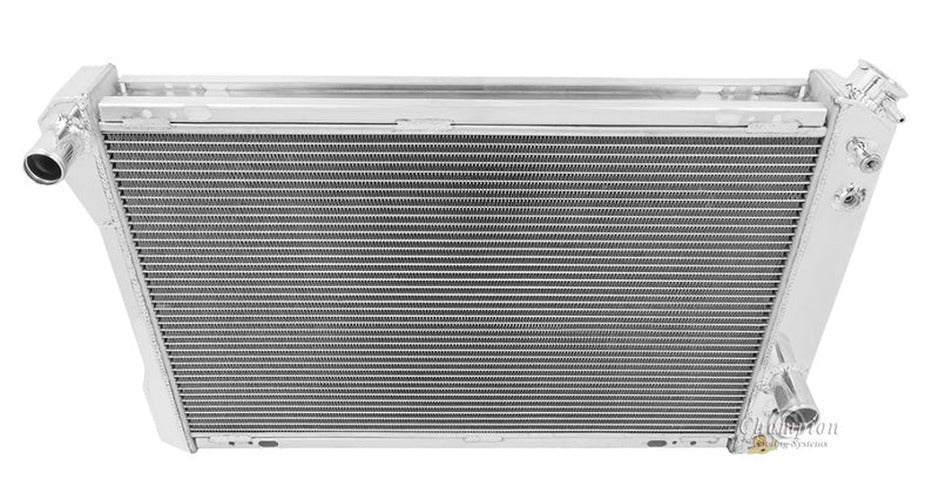

Four-Row All-Aluminum Radiator

The Champion Cooling Systems MC951 is a high-performance, four-row, all-aluminum radiator from their Monster Cooling series, engineered for enthusiasts with heavily modified engines producing significantly more horsepower than stock. This radiator boasts four rows of 11/16" tubes, creating a core approximately 2 3/4" thick, and features brazed aluminum tubes tig-welded to aluminum tanks. It is constructed with aircraft-grade aluminum and approximately 10-12 louvered fins per inch for maximum heat exchange. Key specifications include a total dimension of 20" tall x 32" wide, with a core size of 17.25" tall x 26.25" wide x 2.75" thick. The inlet is on the driver's side at 1.38", and the outlet is on the passenger side at 1.63". It includes a transmission cooler with a 1/2-20 Straight Thread, Inverted Flare fitting and a 13 lb. radiator cap. The oversized tanks and extra row of tubes provide maximum coolant capacity and heat-exchange surface, typically recommended for applications with 800-1200+ horsepower. Due to its maximum sizing, slight modifications to mounting saddles may be required, especially if the stock radiator was not a factory four-row. An aluminum shroud for a 16" fan and electric fans (one 16" or two 12") are recommended and sold separately. This radiator comes with a lifetime warranty.
