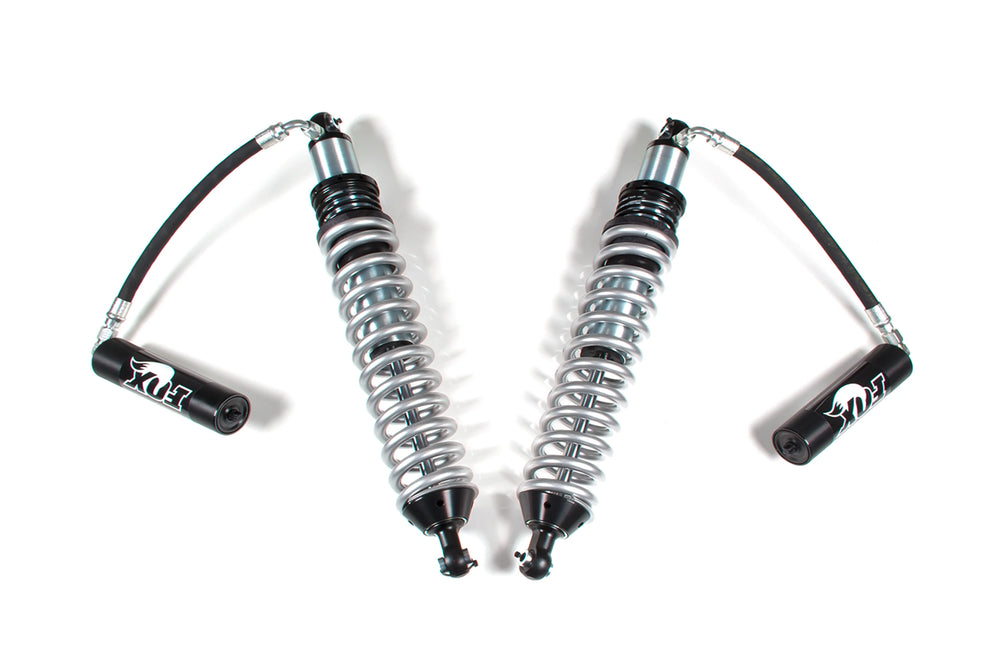

FOX Factory Series 2.5 Coil-Over Shock Absorber Kit w/ Remote Reservoir

The BDS Suspension FOX88402096 is a suspension shock absorber kit designed to provide a race-winning technology upgrade for your vehicle's damping capabilities. It features FOX Factory Series 2.5 Coil-Over shocks equipped with remote reservoirs, engineered to stand up to extreme conditions and deliver precise control. Constructed with a 2.5-inch smooth bore, zinc-plated seamless steel body, these shocks feature a durable zinc-plated and double-clear coated finish. The components are crafted from black-anodized, CNC-machined 6061-T6 billet aluminum for superior strength and longevity. The coil-over design integrates the spring for suspension damping and vehicle support, with adjustable preload and ride height, pre-set to level the vehicle upon installation. This kit is specifically designed for 2003-2013 Dodge Ram 2500 and 2003-2012 3500 4WD models equipped with a BDS 6-inch lift kit. The installation time is estimated at 2-3 hours. Key specifications include a 7/8-inch chrome-plated steel shaft, a 2.5-inch steel cylinder, and a 10.1200-inch travel length. The compressed length is 19.5000 inches, and the extended length is 29.7000 inches. These are gas-charged shocks with a remote reservoir and are not adjustable. The upper and lower mount types are eyelet and special, respectively.
