FRAME KIT LDR BAR 28IN

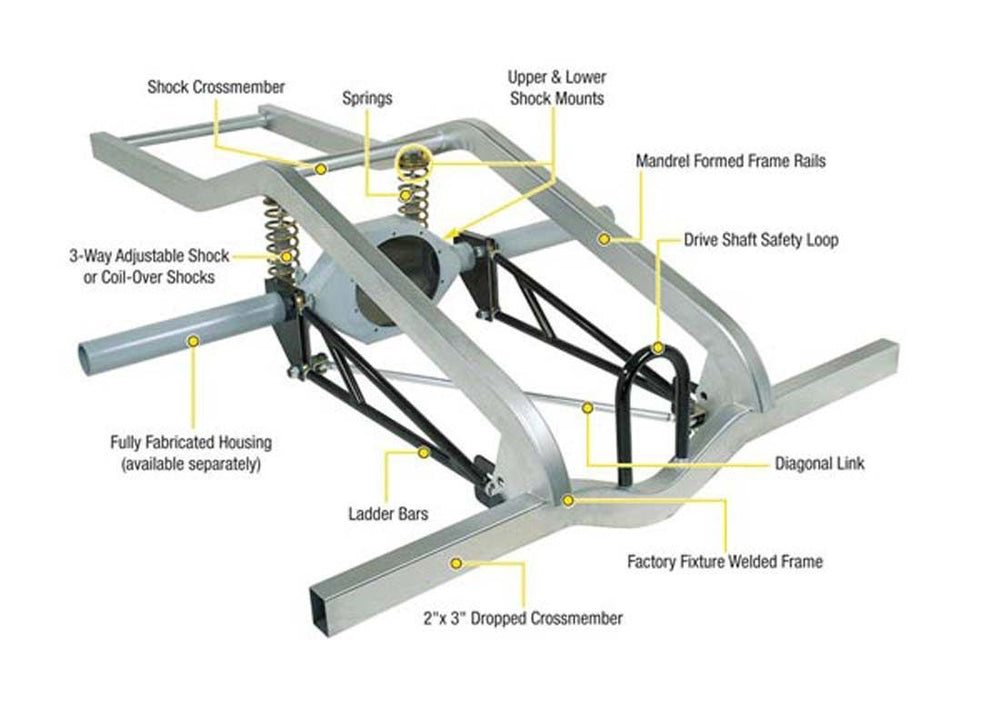

Frame Kit, Ladder Bar, 28 Inch, Coil Over Shock Mount, 1050-1150 lbs Coil Springs, Made to Order. This kit includes ladder bar frame rails, a 2" x 3" crossmember, a diagonal link, a driveshaft loop, a shock crossmember, upper and lower shock mounts, Competition Ladder Bars (Part No. C2006), 12-Way Adjustable Coil-Over Shocks (Part No. C2770), and springs matched to your specific rear vehicle weight. The frame rails are specially engineered to clear suspension and axle components, while accommodating low ride height and wide tires. The crossmember is mandrel formed for uniform provide, with a 3.5" drop center, making it adaptable to virtually any chassis design, and is 60" wide. The diagonal link is made of 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment. The driveshaft loop is a 1-1/8" O.D. mandrel formed Round Tube, designed to contain the driveshaft during U-joint failure. The tubular shock crossmember provides high strength with light weight. The upper and lower shock mounts provide 6" of ride height adjustment. The Competition Ladder Bars provide a solid connection between the rear axle housing and chassis, preventing wheel hop. The 12-Way Adjustable Coil-Over Shocks are externally adjustable with a CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height; shocks also have 1" wide top/bottom bearings. Springs are 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability.
