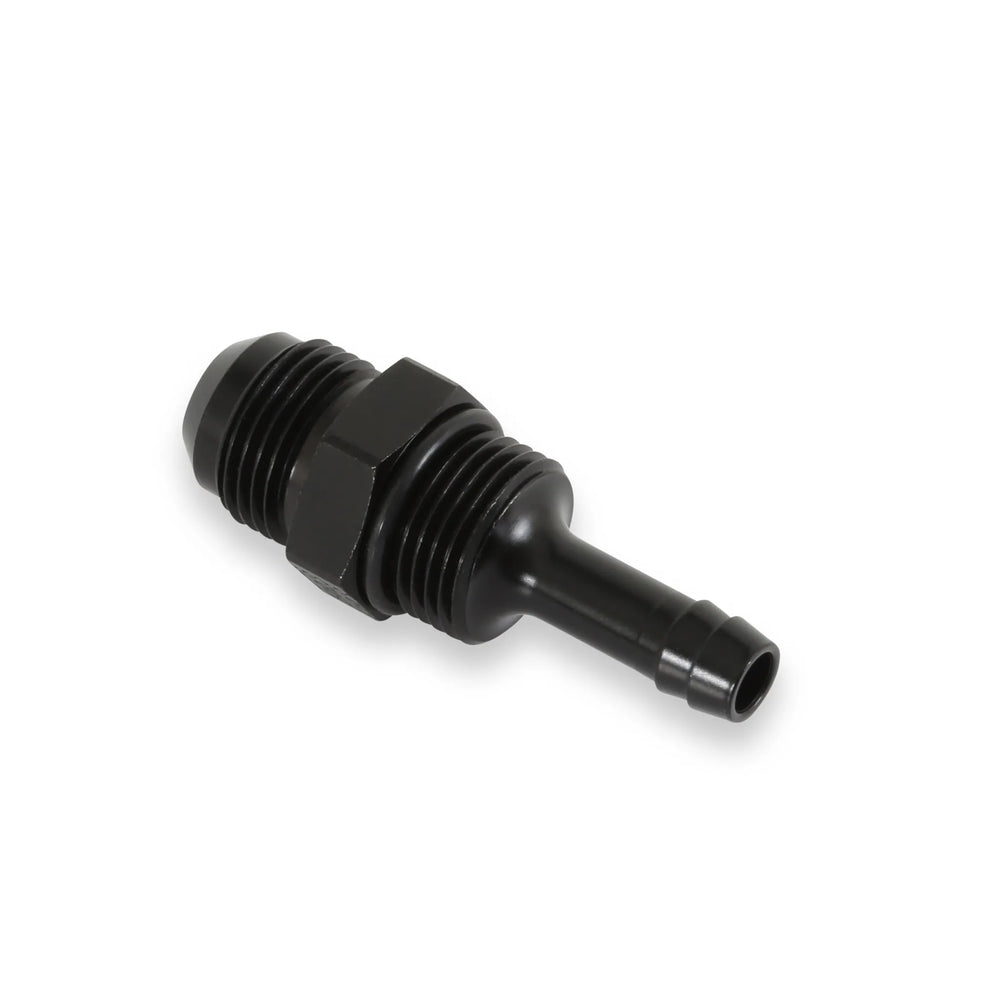

FUEL CELL RETURN FITTING KIT

Part #: 26-511

Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.

Features:

• Effectively routes returning fuel below surface level eliminating overhead splash
• Minimizes erratic fuel pressures caused by turbulent flow and aeration of the fuel
• Maintains consistent fuel pressure
• Comes with fitting, hose and clamp
• 10AN ORB port to 10AN male fitting made of 6061-T6 aluminum
• Anodized fitting prevents galling of threads and corrosion protection
• Corrugated tube is flexible to route around foam to bottom of fuel cell
• Pump gas and E85 compatible
