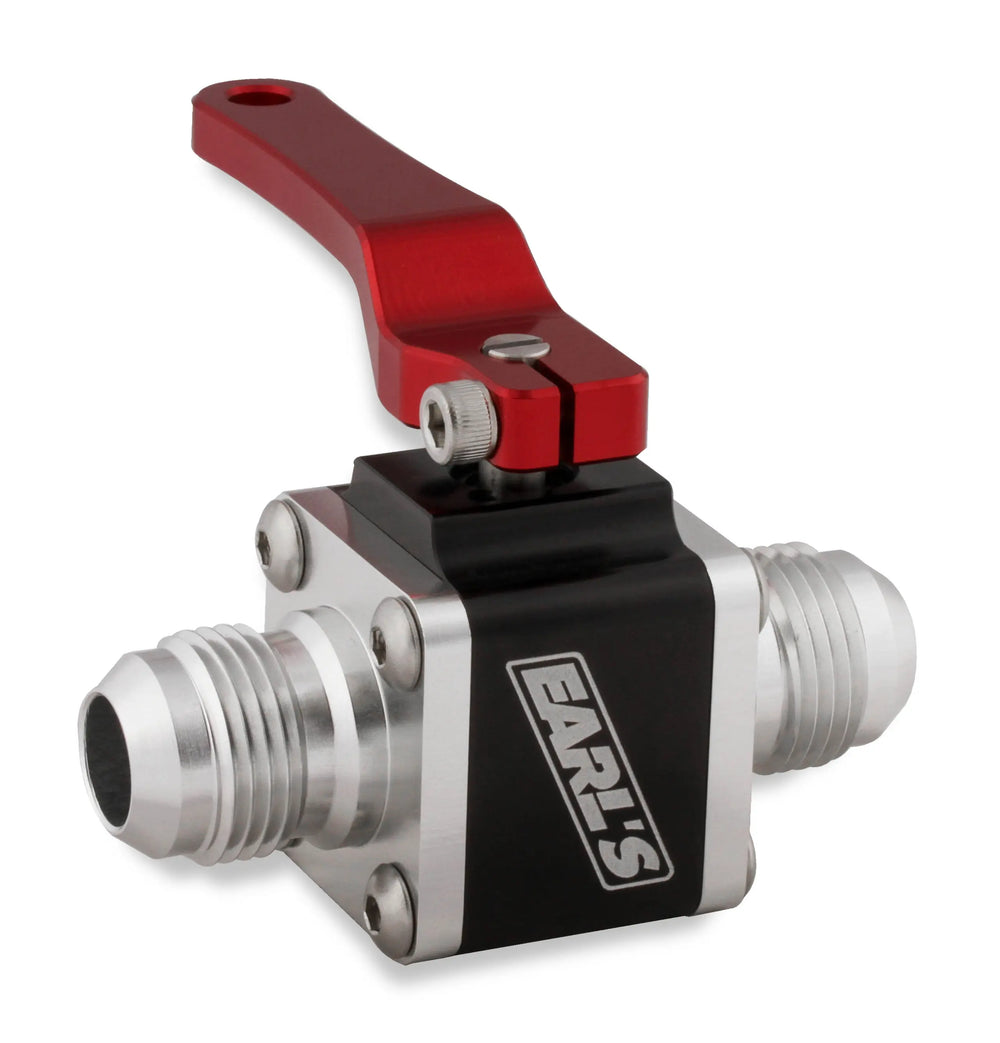

-10AN MALE TO MALE ULTRAPRO BALL VALVE

Part #: 230510ERL

Earl's UltraPro ball valves are ideal for all racing applications & provide full uninterrupted flow when opened. The lightweight modular design is easy to rebuild and can be panel mounted using optional billet mounting brackets. The glass reinforced PTFE seals are compatible with gasoline, racing fuels, methanol, alcohol, E85, oil, water & coolant. The small body valves are available in -6 & -8 AN sizes, and the large body valves are available in -10 & -12 AN sizes (choose from male/male, or male/female styles). Attractive clear & black anodized finish w/ red handle. The handle features a 1/4" hole for cable operation & is curved outward from the body for easy operation w/ extra finger clearance (even w/ racing gloves). These racing ball valves are ideal for use in most fuel and oil systems (i.e. fuel shut-off valves, oil accumulators/accusump (TM) systems, and many other applications).

Features:

• Light Weight Aluminum Billet Construction - 6061-T6 Aluminum & Stainless Steel Components
• UltraPro AN Ball Valve
• Hard Coated PTFE Aluminum Ball
• Design Provides Full Uninterrupted Flow When Opened
• Finish: Anodized in Clear & Black w/ Red Handle
• Glass Reinforced PTFE Seals - Compatible w/ Methanol, Alcohol, Race Gas, Pump Gas, E85, Bio-Fuels, Diesel, Oil, ATF, and Coolant
• Small Body in -6 & -8 AN Sizes - Overall Dimensions: 2.73" Long x 1.05" Wide x 1.78" Tall
• Large Body in -10 & -12 AN Sizes - Overall Dimensions: 3.25" Long x 1.45" Wide x 2.42" Tall
• Choose from Male/Male, or Male/Female Styles
• Curved Handle Provides Extra Finger Clearance - Even w/ Racing Gloves
• Easy Panel Mounting w/ Optional Mounting Brackets (Clockable Every 90 Degrees)
• Maximum Recommended Working Pressure: 200 PSI
• Clamshell Packaging - Ideal for Retail Display
• Ideal for All Racing Applications - Including Fuel & Oil Systems

UltraPro AN Ball Valve | For -10AN Male To Male
