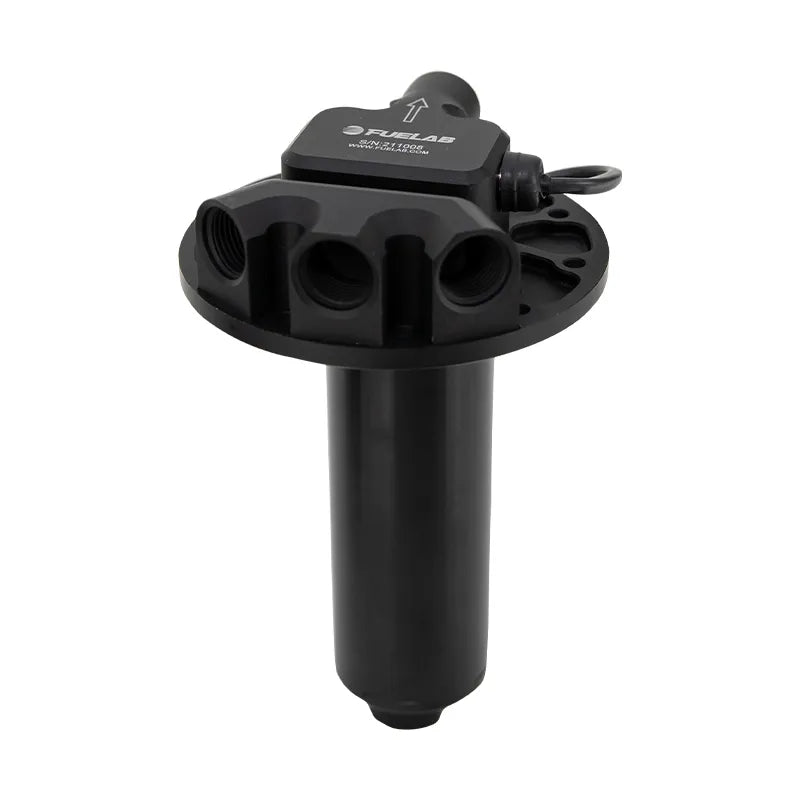

Fuelab High Efficiency EFI 850 HP SAE Plate Mount Brushless Screw Pump - 350 LHP

The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump (850 HP, 400 LPH) provides consistent high-volume fuel flow up to 400 LPH at 45 PSI, supporting applications up to 850 horsepower. It's engineered for high-performance engines, offering superior priming and resistance to vapor lock, with multi-fuel compatibility (gasoline, diesel, methanol, ethanol). Constructed from billet aluminum with an MIL-A-8625 Type II anodized finish for durability. Its compact design weighs less than 2.5 lbs. Features an internal twin screw rotor pumping mechanism and multi-fuel compatible fluorosilicone static seals for long service life. Installation uses a flange-mounted SAE 10-bolt pattern, compatible with fuel cells or fabricated reservoirs. Operates within a 12-16V electrical system with variable duty motor speed control. Utilizes a lightweight, efficient DC brushless motor with Neodymium rare earth magnets, eliminating brushes. The wet motor design removes dynamic shaft seals. Overall length 8”, diameter 2”. Accepts standard or port style -8AN fittings. Backed by a limited lifetime warranty.
