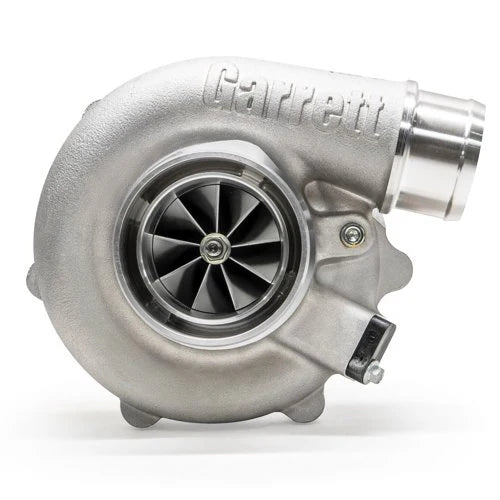

G30-660 Turbocharger Assembly Kit

The Garrett G30-660 is a standard rotation turbocharger assembly kit designed for performance applications. This turbocharger includes fully machined speed sensor and pressure ports, along with a one-piece center housing and backplate for enhanced durability. Four water jacket ports allow for customizable installation. The Mar-M turbine wheel material is rated for temperatures up to 1050° C (1922° F), and the stainless steel turbine housings are also designed to withstand these high temperatures. The assembly includes an oil restrictor fitting, two coolant fittings, and V-band clamps for the turbine housing inlet and outlet. Installation hardware, such as V-band flanges for the manifold and down-pipe, an oil drain flange kit, and a boost pressure port fitting, are available separately. This turbo is suitable for displacements from 2.0 to 3.5 L and can produce between 300 and 660 HP.
