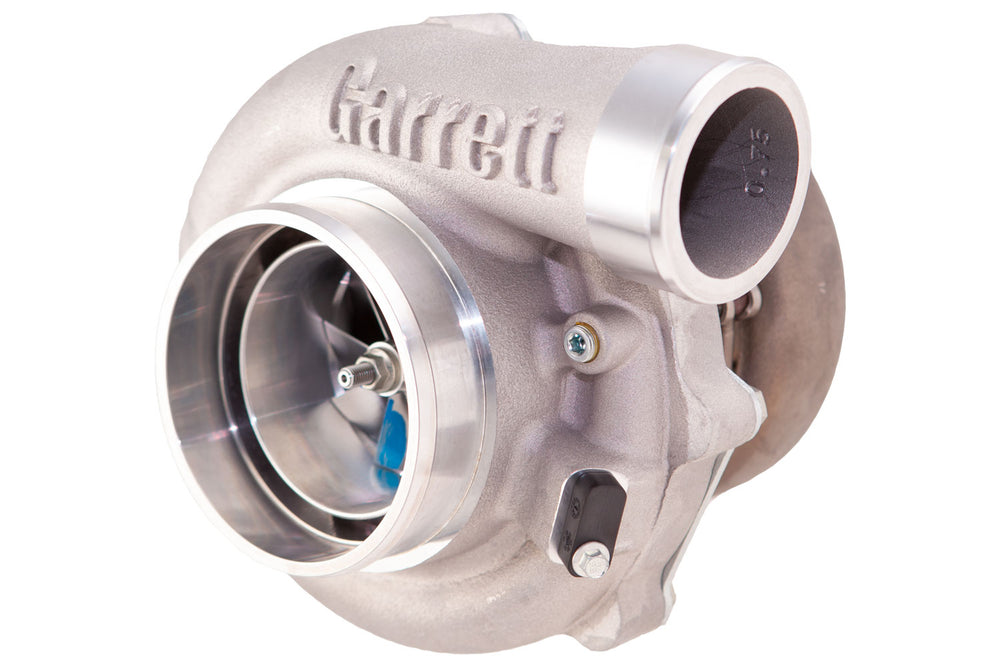

G35-1050 Turbocharger

The Garrett G35-1050 Turbocharger represents the cutting edge in forced induction technology, designed to deliver exceptional performance within a compact form factor. The compressor housing features an integrated, easy-plug speed sensor port for convenient data acquisition. Constructed with advanced materials, this turbocharger features a MAR-M 1050°C turbine wheel and a stainless steel turbine housing, both rated for extreme temperatures up to 1050°C. The dual ceramic ball bearing cartridges ensure smooth operation and durability. For efficient cooling, it incorporates four large water jacket ports and is also oil-cooled. The center housing utilizes a V-band connection, allowing for 360° rotation to facilitate installation. To mitigate oil leaks, it features twin piston ring seals on both the compressor and turbine sides. The G35-1050 is specified for a horsepower range of 700-1050 HP and is suitable for engine displacements from 2.5L to 5.5L. Its V-band inlet and outlet, along with a 1.01 A/R turbine housing, are key specifications for its performance characteristics. It comes with essential components such as -4AN oil restrictor fitting with a 1mm orifice, two -6AN water fittings, and two plugs.
