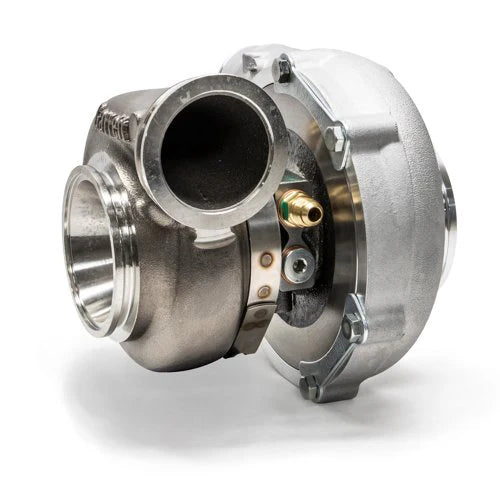

G35-1050 Turbocharger Assembly Kit

The Garrett G35-1050 is a standard rotation turbo assembly kit, featuring a 1.21 A/R Overwatch (O/V) configuration with V-Band inlet and outlet connections. This turbocharger is engineered with new G Series compressor wheel aerodynamics, offering advanced performance characteristics. It includes fully machined speed sensor and pressure ports for easy integration with monitoring systems. Constructed for durability, the G35-1050 boasts a one-piece center housing and backplate. It also incorporates four water jacket ports for flexible installation options and utilizes Mar-M turbine wheel material and stainless steel turbine housings, both rated for extreme temperatures up to 1050°C (1922°F). The kit comes complete with an oil restrictor fitting (1mm to -4AN) and two coolant fittings (-6AN), along with V-Band clamps for the turbine housing inlet and outlet. Specifications for this turbo include a compressor wheel inducer of 68mm, exducer of 84mm, and a trim of 65, with a compressor housing A/R of 0.72. The turbine side features an inducer of 68mm, exducer of 62mm, and a trim of 84. This turbo is suitable for engines with displacements ranging from 2.5 to 5.5 liters and is capable of supporting 700 to 1050 horsepower.
