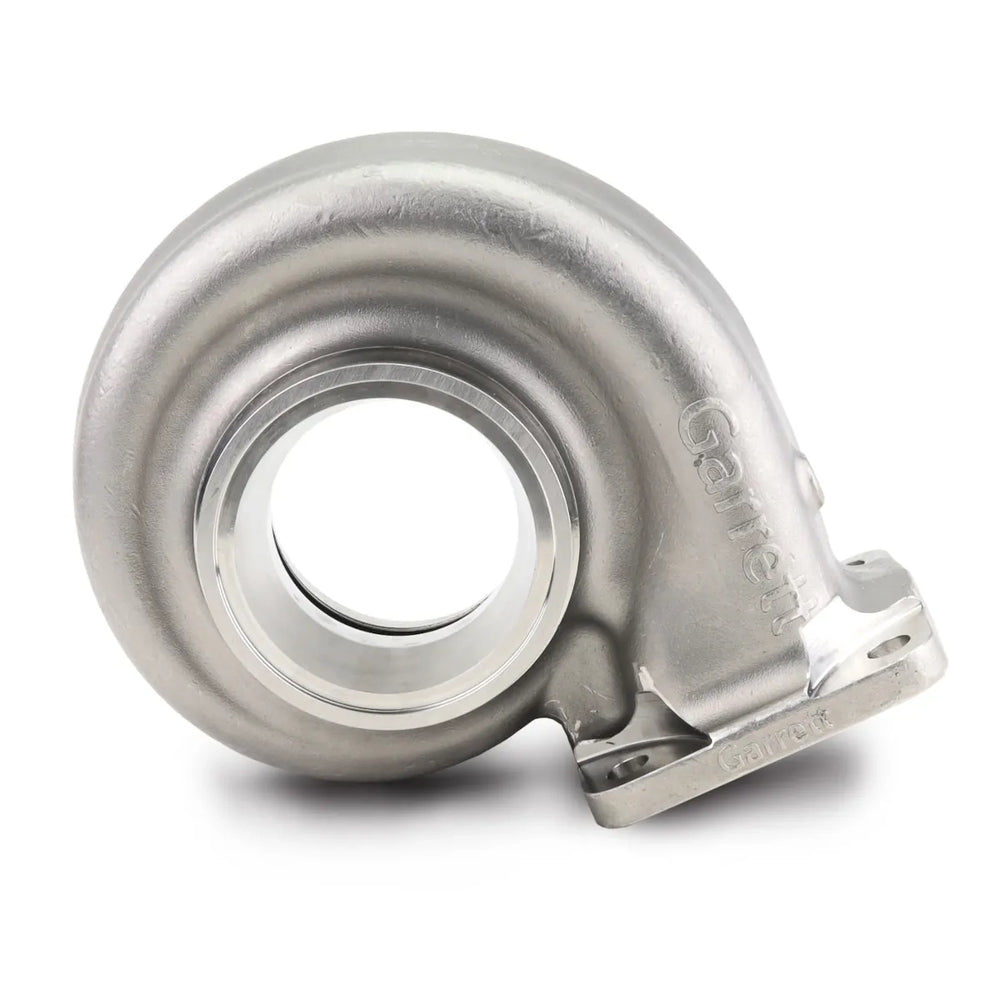

G35 Turbine Housing Kit 1.06 A/R Divided T4

The Garrett G35 Turbine Housing Kit is designed to optimize the performance of G-Series supercores by enhancing turbine flow and efficiency. Constructed from durable stainless steel, this housing is built to withstand high temperatures and maintain strength under demanding conditions. The V-band connection system streamlines the installation process and allows for easy clocking of the housing. Key features include a 1.06 A/R divided turbine housing with a T4 inlet flange, specifically designed for the G35-900 supercore. The housing is engineered with new G Series compressor wheel aerodynamics and includes fully machined speed sensor and pressure ports. It is available in standard and reverse rotation configurations. The kit comes complete with hardware and a gasket, though a weld flange is not included. Specifications for this model include a 62mm compressor wheel inducer, 76mm exducer, and a 65 trim. The compressor housing has a 0.72 A/R. The turbine wheel features a 68mm inducer, 62mm exducer, and an 84 trim. The Mar-M turbine wheel material is rated for temperatures up to 1050° C (1922° F). This product is not CARB legal and is not for sale in California. There is no specific fitment application data provided, so buyers are advised to verify fitment manually. Installation hardware, including an oil feed fitting with a .035" restrictor, an oil drain flange, gasket, fasteners, and a boost pressure port fitting, are included. Alternate coolant and oil fittings and flanges are also available.
