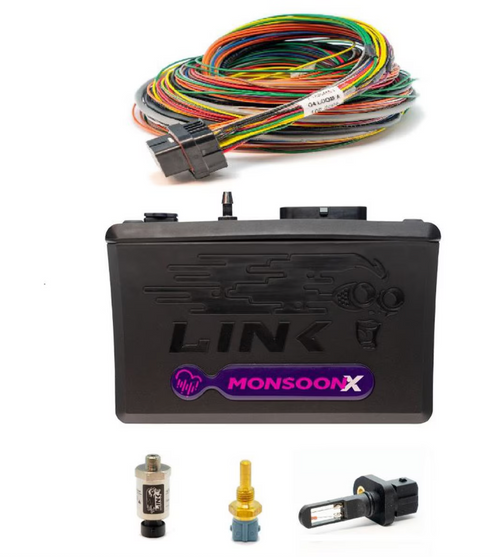

G4X MonsoonX ECU

The Link G4X MonsoonX ECU is an advanced engine management system built for performance enthusiasts. It boasts significant upgrades over the G4+ series, including 512 megabytes of 32-bit data logging capacity, capable of capturing up to 250 channels at 1kHz per channel for a maximum of 100 kSamples/sec. This enhanced logging allows for more detailed analysis and precise tuning. The MonsoonX provides comprehensive control capabilities, supporting features like Launch Control, Anti-lag, VVT Control, and Closed Loop Boost Control. It is ideal for engines requiring a retune and specific performance enhancements without needing a higher-level ECU. The unit integrates a 4-bar MAP sensor, reducing installation costs and complexity. It can manage up to 4 cylinders with sequential injection and direct spark, or up to 12 cylinders in distributed mode, and 2-8 cylinders in wasted spark configurations. It also supports odd-fire and 2-stroke engines. Key features include up to 440-zone fuel and ignition tables with configurable axis parameters, advanced boost control with open and closed-loop options, and sophisticated idle control. The ECU is powered by a 150 MHz specialized engine management microprocessor with 32-bit floating-point calculations and 12-bit ADC resolution, capable of handling over 20,000 RPM. It offers extensive input and output options, including 4 injector drives, 4 ignition channels, 6 auxiliary outputs, 4 digital inputs, 2 temperature inputs, and 4 analog inputs. Important notes for installation include the requirement for a separate Loom A connector kit. For digital wideband lambda control, a CANLAM (125-1000) unit is necessary. The MonsoonX comes with waterproof connectors, a mounting bracket, and a USB tuning cable, but the loom must be purchased separately. All ECU tuning and services are intended for off-road motorsports use only.
