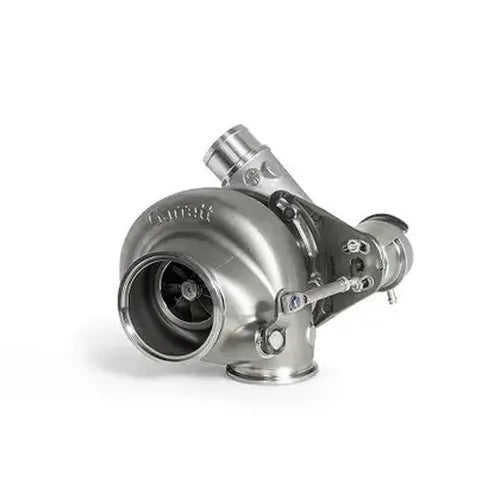

Garrett G30-660 Turbocharger 1.01 A/R O/V V-Band In/Out - Internal WG (Standard Rotation)

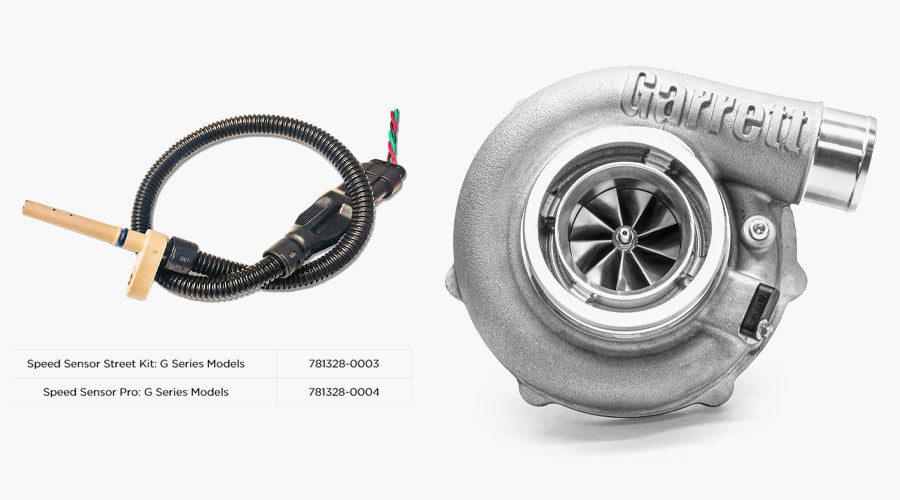

The Garrett G-Series G30-660 turbocharger (MPN: 880704-5003S) is a high-performance unit designed for custom applications. It is compatible with 2.0L – 3.5L engine displacements and capable of producing up to 660 horsepower. Key features include G Series compressor aerodynamics for maximum horsepower, up to 79% maximum compressor efficiency, and a MAR-M alloy turbine wheel rated up to 1050° C. It also incorporates new turbine aero for higher flow and efficiency, and stainless steel turbine housings rated up to 1050° C. The turbocharger comes with oil restrictor and water fittings, along with fully machined speed sensor and pressure ports. All assemblies are calibrated with a 0.5 bar actuator. The compressor housing has a fully machined ported shroud to reduce compressor surge and a speed sensor port for shaft speed monitoring. Durability is enhanced by a new one-piece center housing and backplate. Both standard and reverse rotation options are available.
