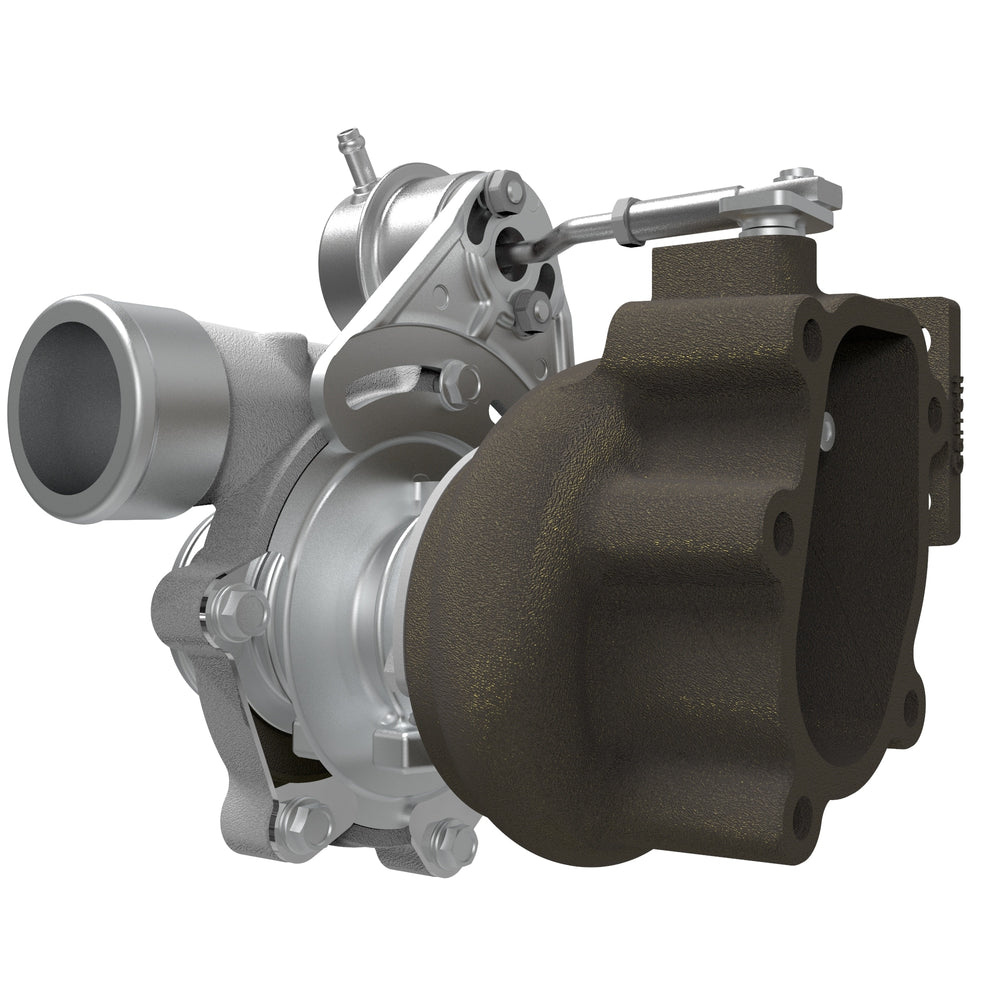

Garrett GBC17-250 Club Line Turbocharger 0.50 O/V T25 / 5-Bolt - Internal WG

The Garrett GBC17-250 Club Line Turbocharger is engineered for small engine displacements (0.6L - 1.5L), supporting 150-250 horsepower. It features a 36mm compressor inducer, a T25 inlet flange, and a 5-bolt outlet pattern compatible with GT25/GT28 turbos. This turbocharger includes an integrated wastegate assembly with a calibrated 0.5 bar actuator, a billet compressor wheel with extended tip design, and GTX Gen II compressor aero. It utilizes an Inconel turbine wheel, a ductile iron (SiMo+) turbine housing, and a latest-generation journal bearing rotor group with a 360-degree thrust bearing. The center housing is oil-cooled, and it includes a boost signal port with an installed plug. Designed to use existing 480009 actuators.
