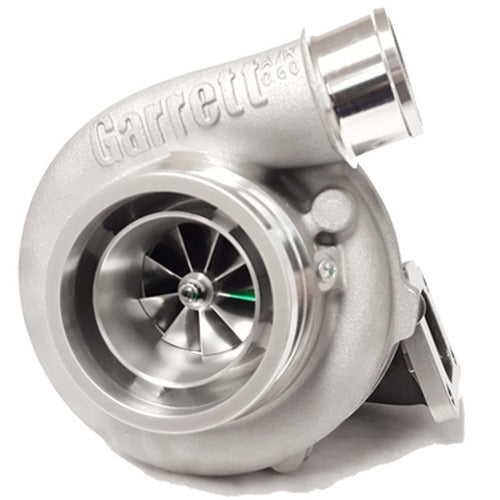

Garrett GEN2 GTX3071R Dual Ball Bearing Turbocharger

The ATP GRT-TBO-C27 is a Garrett GEN2 GTX3071R dual ball bearing turbocharger, designed for high-performance applications. This unit boasts an advanced GEN2 billet compressor wheel engineered for superior aerodynamics and ultra-high flow, enabling it to support up to 650 horsepower. Key components include a forged billet aluminum compressor wheel and a dual ball bearing CHRA rotating assembly for enhanced durability and responsiveness. The turbocharger is configured with a .63 A/R T3 turbine housing and features a GT 4 Bolt 3" conical exit. Its specifications include a 54mm compressor wheel inducer, 71mm exducer, and 58 trim, with a 0.60 A/R compressor housing. The turbine wheel specifications are a 60mm inducer, 55mm exducer, and 84 trim. Installation may require specific fittings and components, such as coolant/water lines, oil feed and drain lines, and exhaust flanges. ATP Turbo offers a range of compatible parts, including 14mm coolant fittings, -4 AN oil feed lines with restrictors, and various oil drain flanges and gaskets. Turbine inlet and outlet flanges, along with their corresponding gaskets, are also available to facilitate a proper installation.
