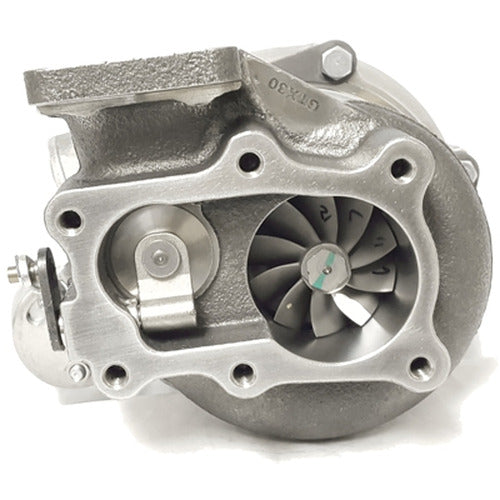

Garrett GEN2 GTX3076R Dual Ball Bearing Turbocharger

The ATP Turbo GRT-TBO-J28 is a Garrett GEN2 GTX3076R dual ball bearing turbocharger, designed as a drop-in replacement for the RB25DET engine. This turbo features an advanced, ultra-high-flow Garrett GTX GEN2 compressor wheel with forged billet aluminum construction. Key specifications include a compressor wheel inducer of 58mm and exducer of 76mm with a trim of 58, and a compressor housing A/R of 0.60. The turbine side features a 60mm inducer and 55mm exducer with an 84 trim. The CHRA rotating assembly utilizes a dual ball bearing system for enhanced durability and performance, with a horsepower capability of 750HP. This turbocharger comes complete with a T3 6-bolt exit turbine housing and a 1-bar internal wastegate actuator. Please note that alternate coolant and oil fittings, flanges, and components, sold separately, are required to connect this GT/GTX turbo. Specific part numbers for these components are available, including ATP-RB2-002 for coolant in/out, ATP-RB2-001 for oil feed, ATP-VSRT-014 for the oil drain flange, and GRT-GSK-008 for the oil drain gasket.
