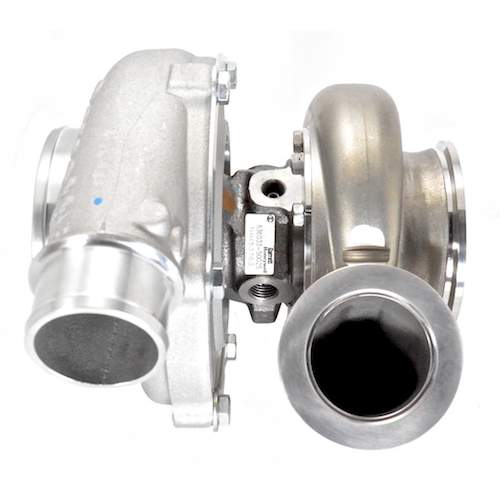

Garrett GEN2 GTX3076R Dual Ball Bearing Turbocharger

The ATP Turbo GRT-TBO-812 is a Garrett GEN2 GTX3076R dual ball bearing turbocharger engineered for high-performance applications. It boasts an advanced GEN2 billet compressor wheel with ultra-high flow aerodynamics, capable of supporting up to 750 horsepower. This forged aluminum compressor wheel is a key component for significant power gains. Key specifications include a 58mm compressor wheel inducer, 76mm exducer, and 58 trim. The compressor housing is a T04E frame with a 4-inch inlet, 2-inch outlet, and ported shroud, featuring a 0.60 A/R. The turbine side features a 60mm inducer, 55mm exducer, and 84 trim. This model comes with a Tial stainless steel V-band turbine housing, with options for different A/R ratios available separately. Installation requires specific hardware, including an oil feed fitting (OIL-021), oil drain flange (FLA-010), and oil drain gasket (GSK-008). Fasteners such as 8mm x 1.25 studs (FST-030) and locking head nuts (FST-031) are also needed, along with V-band inlet (FLS-093) and outlet (FLS-094) flanges and clamps (CLA-025, CLA-026). Alternate coolant and oil fittings are available.
