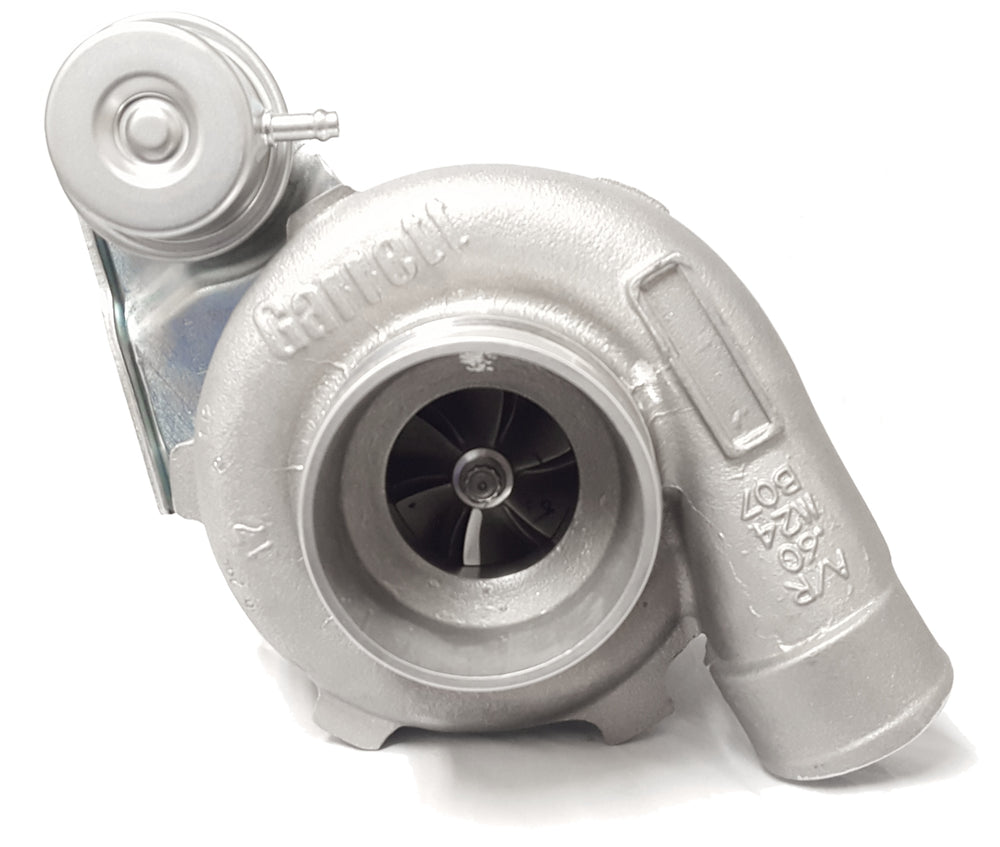

Garrett GT2860RS Dual Ball Bearing Turbocharger

The Garrett GT2860RS turbocharger, identified by the ATP Turbo code GRT-TBO-B47, is a performance-oriented unit featuring a dual ball bearing center housing rotating assembly (CHRA) for enhanced durability and responsiveness. This turbo is constructed with a genuine Garrett GT Aero compressor wheel and a genuine Garrett GT Inconel turbine wheel. Key specifications for this turbo include a compressor wheel inducer size of 47.2mm and an exducer of 60.1mm, with a trim of 62. The compressor housing boasts a 0.60 A/R. For the turbine side, the inducer is 53.9mm and the exducer is 47mm, with a trim of 76. The unit comes equipped with a 14 psi actuator and a .64 A/R V-Band entry Garrett Turbine Housing. ATP Turbo offers a range of compatible fittings, flanges, and components to facilitate installation. These include options for coolant (water) lines, oil feed, oil drain, V-band inlet, and outlet flanges for the downpipe. The company also provides wastegate actuators and brackets.
