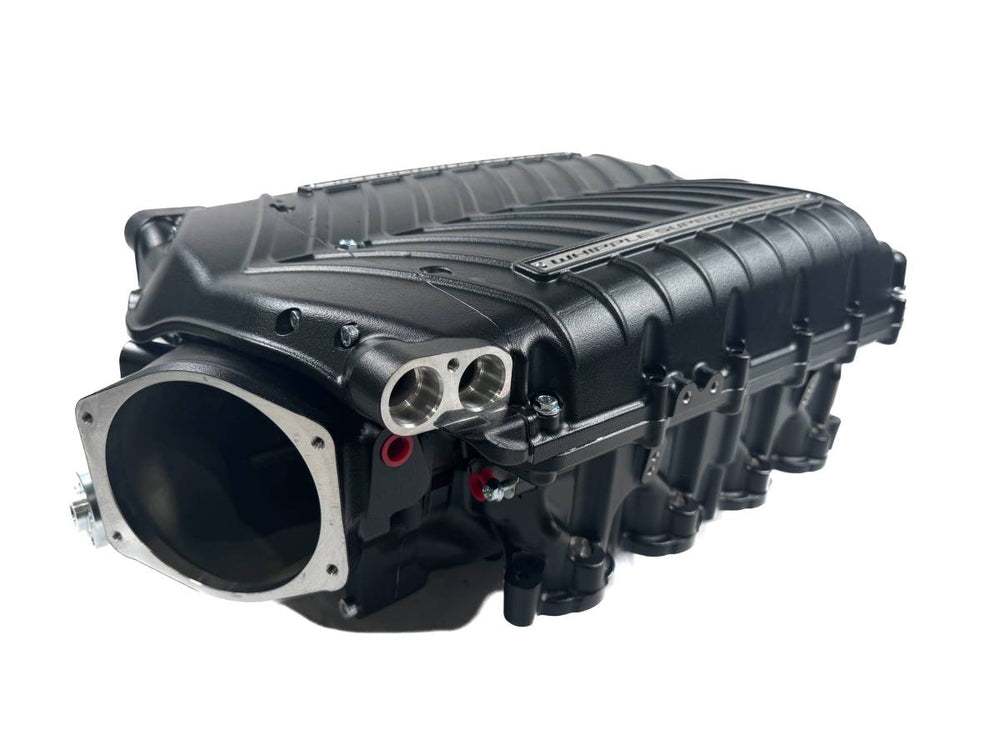

Gen 6 3.0L Stage 1 Supercharger Kit

The Whipple Gen 6 3.0L Stage 1 Supercharger Kit is engineered for the 2024-2026 Ford Mustang GT and Dark Horse 5.0L S650, delivering significant performance gains with 50-state emissions legality when installed with the certified calibration. This kit combines Whipple's latest twin-screw supercharger technology with high-flow intake hardware and an advanced intercooling system. The inverted Gen 6 layout is designed for a clean, factory-like fit under the stock hood, eliminating the need for cutting or modification to the hood, K-brace, or block. Installation is facilitated by plug-and-play wiring, OEM-style quick-connect fittings, and Whipple's included calibration support, focusing on a serviceable and drivability-centric setup. The airflow path begins with dual high-flow air filters feeding an oversized Crusher Y-tube and a 120mm supercharger inlet, designed to accommodate 92mm, 112mm, and 120mm throttle body configurations for improved airflow and throttle response. At the heart of the system is the Gen 6 3.0L Whipple twin-screw supercharger, featuring a 3x4 rotor combination and optimized port geometry to minimize restriction and parasitic loss, resulting in responsive boost and broad torque delivery suitable for both GT and Dark Horse applications. Thermal management is handled by Whipple's patented dual-core, dual-pass intercooler system, which routes charge air through each core twice for superior cooling. This is further supported by an oversized heat exchanger and a high-flow intercooler pump, ensuring consistent Intake Air Temperature 2 (IAT2) control during demanding driving conditions. Included with the kit is the Tomahawk V2 flash tool and Whipple calibration, specifically designed to preserve OEM safeguards, idle quality, part-throttle manners, and emissions compliance while unlocking enhanced performance. The system is CARB Executive Order approved (EO D-231-129) and 50-state legal when installed as supplied. This kit is compatible with both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) S650 Mustang configurations. Verification of fuel requirements and specific installation needs is recommended before purchase.
