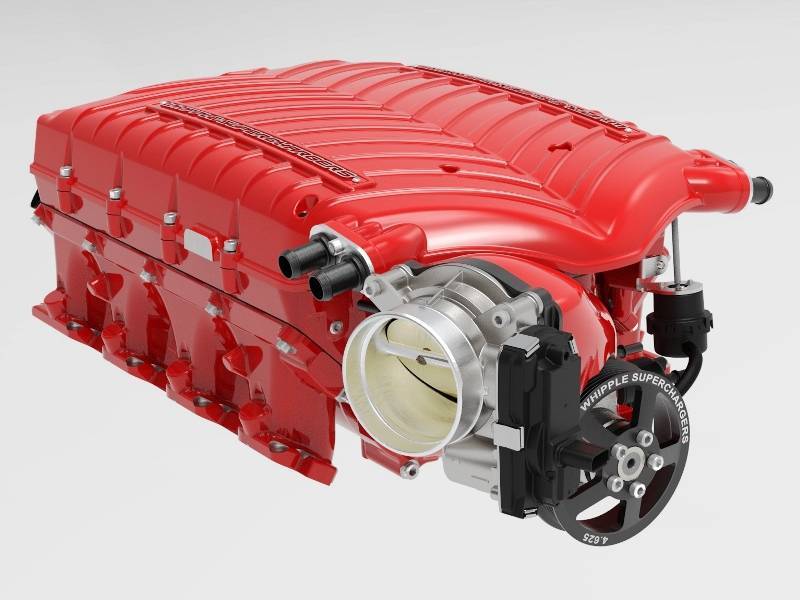

Gen 6 3.0L Supercharger System

The Whipple WK-1200-SUV-30 is a comprehensive intercooled supercharger system engineered for GM direct-injected 5.3L engines in 2014-2018 trucks and 2015-2020 SUVs. This kit is designed to deliver a significant power increase of over 150 horsepower and 20 ft-lb of torque on 91-octane fuel, operating at a conservative 7-8 psi of boost. At the heart of this system is the W185ax Gen 6 Whipple twin-screw supercharger, boasting 3.0L of displacement and achieving 99% volumetric efficiency for maximum power potential. It features Whipple's patented dual-core, dual-pass air-to-water intercooler, which offers unmatched cooling capacity with 2 intercooler cores and a dual-pass design for the heat exchanger. This setup ensures uncompromised cooling and sustained power output. The system includes an HP Tuners RTD flash tool and calibration, providing a 50-state legal tune for stock vehicles or those with only a cat-back exhaust. It also comes with a 3-bar GM LT4 TMAP sensor, new spark plugs, a high-flow air filter, and an adjustable 6-rib billet belt system. All necessary hardware, including pre-formed and fitted hoses with plug-and-play wiring, is included for a straightforward installation, often manageable over a weekend without requiring major modifications or specialized tools. Whipple's technology significantly outperforms competitors, offering more horsepower per pound of boost. The Gen 6 supercharger features a unique 3x4 rotor combination for increased RPM capacity and an intercooled bypass system that reduces tip-in knock and improves throttle response. The massive 112mm inlet accommodates most throttle bodies, and the system fits under the factory hood without modifications. The supercharger is available in a standard textured black finish or can be customized to any color. This complete kit includes everything needed for installation, such as mounting brackets, pullies, belts, the intercooler, all tubing, piping, fittings, clamps, and even lubrication oil for the self-contained system. It comes with a 1-year limited warranty, with an optional 3-year/36,000-mile powertrain warranty available.
