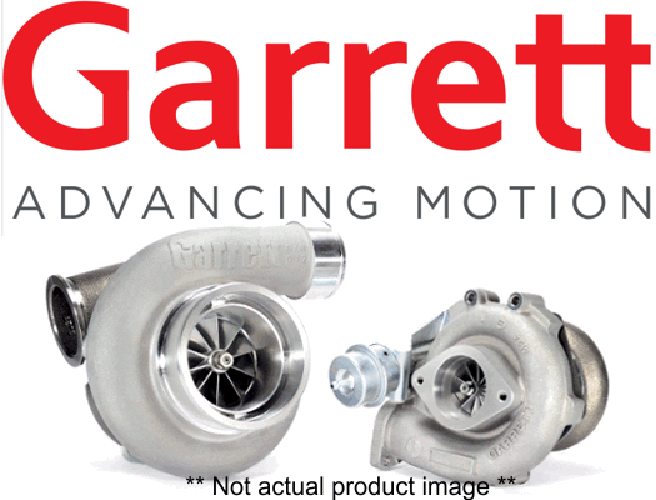

GEN II GTX3076R Turbocharger

The Garrett GEN II GTX3076R Turbocharger is engineered to deliver significant power gains for performance enthusiasts. This turbocharger boasts a robust construction, featuring a T3 undivided inlet and a V-Band outlet turbine housing with a 0.82 A/R for optimal exhaust flow. Designed for smaller displacement engines, it is ideal for applications ranging from 1.8L to 3.0L, supporting a horsepower range of 400 to 750 HP. Key specifications include a 58.00mm compressor wheel inducer size and a 55.00mm turbine wheel exducer size, with a compressor wheel trim of 58.00 mm and a turbine wheel trim of 84.00. The turbocharger is equipped with a speed sensor port and has a maximum allowable turbocharger speed of 145krpm. It utilizes an 8mm dual ceramic ball bearing for smooth operation and durability. This turbocharger is part of Garrett's renowned GTX series, known for its advanced aerodynamics and fully machined speed sensor ports. The T3 flange and 3" V-Band turbine discharge flange offer versatile mounting options.
