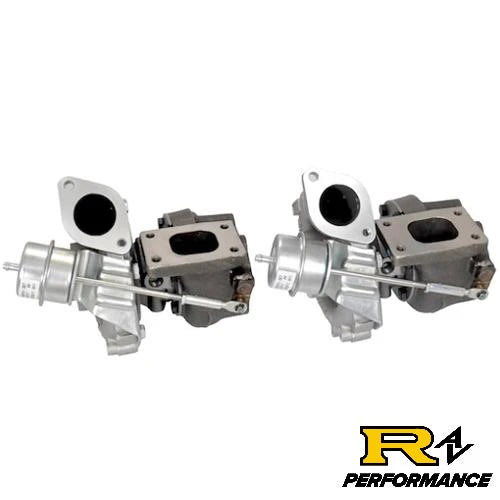

Gen2 GTX2860R Twin Turbocharger Kit

The Garrett GEN2 GTX2860R dual ball bearing twin turbochargers offer a significant performance upgrade for the Nissan Skyline GT-R RB26DETT engine. This kit is engineered to support over 900 horsepower when configured as a twin-turbo setup. Key features include advanced aerodynamics and an ultra-high-flow Garrett GTX GEN2 forged billet aluminum compressor wheel, coupled with a dual ball bearing CHRA rotating assembly for durability and performance. The design prioritizes a bolt-on installation for the Nissan RB26DETT motor, integrating seamlessly with stock flange exhaust manifolds and O2 housings. Specifications for each turbo include a 46mm compressor wheel inducer, 60mm exducer, and a 58 trim. The compressor housing is rated at 0.60 A/R with a 2-bolt inlet and outlet flange, specifically designed for the RB26DETT. The turbine side features a 54mm inducer, 47mm exducer, and a 76 trim, housed within a 0.64 A/R housing with a T25 inlet and an internal wastegate design. The turbine outlet is a 5-bolt pattern specific to the RB26DETT, and the internal wastegate actuator is set to 14 PSI. This kit is presented as a direct bolt-on twin-turbo solution, intended to facilitate installation and minimize modifications for RB26DETT owners seeking enhanced power output.
