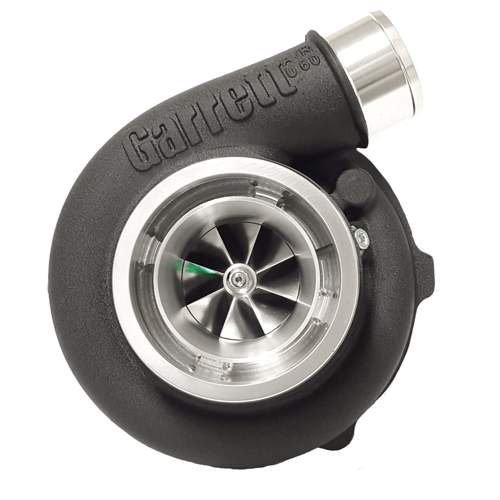

Gen2 GTX3071R Turbocharger with Dual Ball Bearing CHRA

The ATP Turbo GRT-TBO-J89 is a high-performance turbocharger from the Garrett GEN II GTX3071R series, presented in a sleek black finish. This unit is designed for enthusiasts seeking significant power gains, featuring a .82 A/R stainless steel TiAL V-band inlet and a 3-inch V-band outlet on its turbine housing. At its core, this turbocharger boasts an advanced GEN2 billet compressor wheel, engineered with sophisticated aerodynamics for ultra-high flow capabilities. The dual ball bearing CHRA rotating assembly ensures durability and optimal performance. With its specifications, including a 54mm compressor wheel inducer and a 60mm turbine wheel inducer, this turbo is capable of supporting up to 650 horsepower. The unit's compressor specifications include a 71mm exducer and a 58 trim, coupled with a 0.60 A/R compressor housing. The turbine side features a 55mm exducer and an 84 trim. Essential components such as coolant (water) and oil fittings, flanges, and other necessary hardware are available separately. This includes options for 14mm coolant fittings, -4 AN oil feed restrictor fittings, and various V-band flanges and clamps for both inlet and outlet connections, ensuring a comprehensive installation solution.
