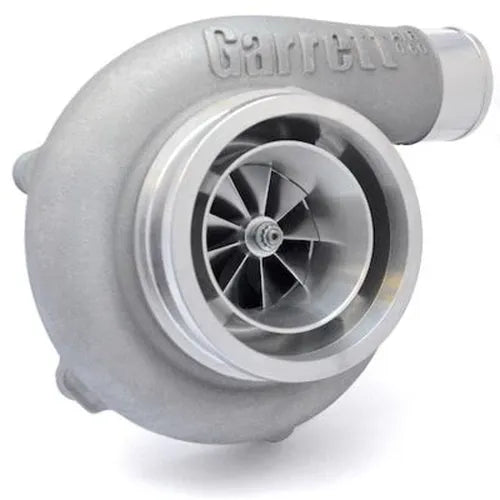

GEN2 GTX3076R Dual Ball Bearing Turbocharger

The Garrett GEN2 GTX3076R dual ball bearing turbocharger from ATP Turbo is engineered for high-performance applications. It boasts an advanced GEN2 forged billet aluminum compressor wheel designed for ultra-high flow and capable of supporting up to 750 horsepower. The CHRA rotating assembly utilizes a dual ball bearing system for improved durability and responsiveness. Key specifications include a 58mm compressor wheel inducer, a 76mm exducer, and a 58 trim. The compressor housing has a 0.60 A/R. The turbine side features a 60mm inducer, a 55mm exducer, and an 84 trim. This turbocharger is compatible with Garrett GT30 and GTX30 series turbine housings. Numerous compressor and turbine housing options are available, including T04E and T04B frame compressor housings, and various V-band and T3/T4 flanged turbine housings with different A/R ratios, allowing for customization to specific engine builds and performance goals. Installation hardware, including oil feed and drain fittings, gaskets, and studs, is available separately. Users should note that alternate coolant and oil fittings and flanges may also be required depending on the application.
