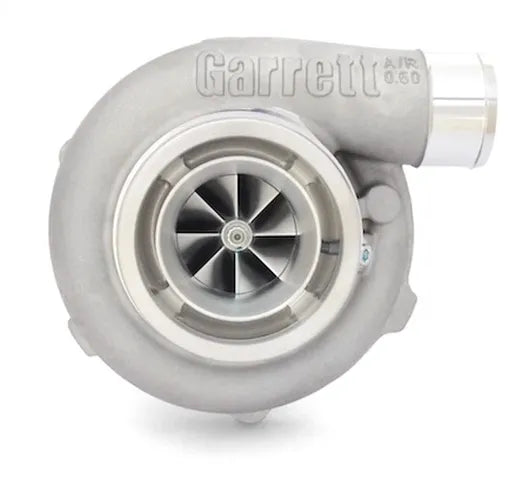

GEN2 GTX3076R Dual Ball Bearing Turbocharger

The Garrett GEN2 GTX3076R dual ball bearing turbocharger is engineered for high-performance, custom turbo setups. It boasts an advanced aerodynamics and ultra-high flow Garrett GTX GEN2 forged billet aluminum compressor wheel, capable of generating up to 700 horsepower. The turbocharger utilizes a dual ball bearing CHRA for enhanced durability and performance. Key specifications include a 58mm compressor wheel inducer, 76mm exducer, and 58 trim. The compressor housing is a T04E frame with a .60 A/R, a 4" inlet, and a 2" outlet, featuring a Gen2 Anti-Surge Shroud. The turbine side features a 60mm inducer, 55mm exducer, and 84 trim with a .61 A/R divided (twin-scroll) V-band inlet and a 3" V-band outlet. The turbine housing is constructed from Ni-Resist material. This turbocharger is intended for custom applications only, and ECS Tuning does not provide support for tuning, fueling, exhaust manifold, or other associated components. It is not for sale or use in the state of California on any pollution-controlled vehicle, as per the California Air Resources Board.
