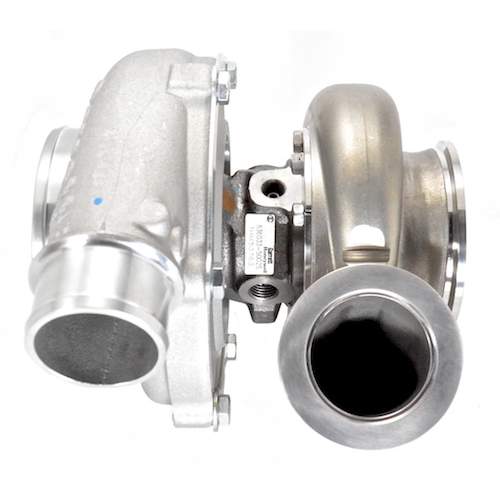

GEN2 GTX3076R Dual Ball Bearing Turbocharger

The Garrett GEN2 GTX3076R turbocharger represents a significant advancement in forced induction technology, designed for enthusiasts seeking maximum power and reliability. This unit is built around a dual ball bearing cartridge for superior spool characteristics and longevity. Its core is the advanced GEN2 billet compressor wheel, engineered with cutting-edge aerodynamics to deliver an impressive 750 horsepower capability. This turbo is specifically designed to be compatible with turbine housings designed for Garrett GT30 and GTX30 series turbochargers, featuring a 60mm inducer and 84 trim turbine wheel. The detailed specifications highlight its performance-oriented design: a 58mm compressor wheel inducer, 76mm exducer, and 58 trim, paired with a 0.60 A/R compressor housing. The turbine side features a 60mm inducer, 55mm exducer, and 84 trim, ensuring a broad powerband. Numerous compressor and turbine housing options are available to tailor the turbocharger's performance to specific applications, including T04E, T04B, T25, T3, and T4 frame housings with various A/R ratios and inlet/outlet configurations. Installation requires careful consideration of supporting systems. The product description notes the need for specific coolant (water) fittings and oil feed and drain components, with options such as -4 AN oil feed lines and appropriate flanges and gaskets available separately. Various V-Band flanges and clamps for manifold and downpipe connections are also listed, along with necessary studs and nuts.
