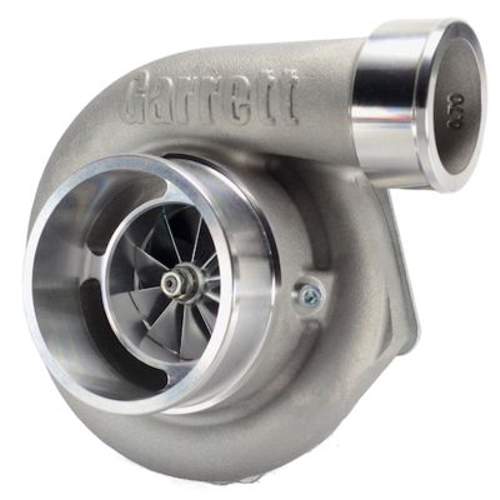

GEN2 GTX3582R Dual Ball Bearing Turbocharger

The Garrett GRT-TBO-852 is a high-performance GEN2 GTX3582R dual ball bearing turbocharger designed to maximize engine potential. It features an advanced aerodynamics and ultra-high flow Garrett GTX GEN2 forged billet aluminum compressor wheel, capable of supporting up to 850 horsepower. The CHRA rotating assembly utilizes a dual ball bearing system for enhanced durability and performance. The compressor specifications include a 66mm inducer, 82mm exducer, and a 64 trim, with a 0.70 A/R compressor housing (T04S Frame: 4" in / 2.5" out). The turbine side features a 68mm inducer, 62mm exducer, and an 84 trim turbine wheel. It comes equipped with a divided 1.06 A/R T4 turbine housing with a 3" GT V-Band exit and an 81mm centering groove. Required installation hardware includes an oil feed fitting (OIL-021), oil drain flange (FLA-010), and oil drain gasket (GSK-008). Additionally, a T4 Divided Inlet Flange (FLS-057) with a gasket (GSK-014) for the turbo manifold and a 3" GT V-Band Outlet Flange (FLS-246) with a matching clamp (CLA-048) for the downpipe are necessary. Alternate coolant and oil fittings and flanges are available.
