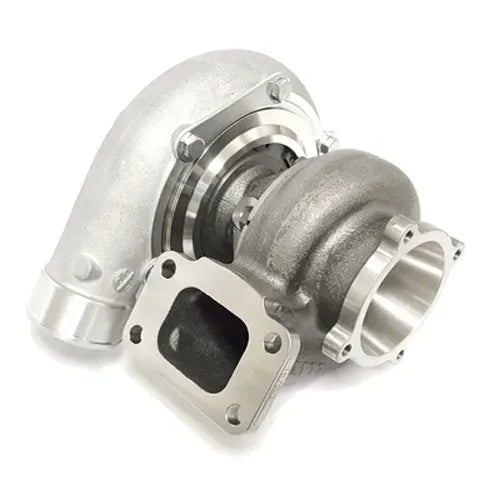

Gen2 GTX3584RS Dual Ball Bearing Turbocharger

The ATP Turbocharger Gen2 GTX3584RS is a high-performance turbocharger engineered for serious automotive applications, capable of supporting up to 1,000 HP. It features an advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel and an ultra-high-flow "RS" blade profile turbine wheel. The unit is built around a dual ball bearing CHRA rotating assembly for enhanced durability and performance. Key specifications include a compressor wheel with a 67mm inducer and 84mm exducer (64 trim), and a T04S Frame compressor housing with a 4" inlet and 2.5" v-band outlet, complete with anti-surge features. The turbine side boasts a 68mm inducer and 62mm exducer (84 trim). This turbocharger is compatible with T3 undivided inlets and features a GT4BOLT exit turbine housing with a 1.06 A/R. Coolant (Water) and Oil fittings, flanges, and component solutions are available, including 14mm coolant fittings and lines, -4 AN oil feed options with a built-in restrictor (ATP-OIL-021), and specific oil drain flanges (ATP-FLA-010) and gaskets (GRT-GSK-008). Flanges for the T3 inlet (Stainless Steel: ATP-FLS-038) and the GT 4 Bolt 3" discharge (Stainless Steel: ATP-FLS-085) are also offered, along with corresponding gaskets. This turbocharger is also known by its Garrett part number, 846098-5001S. Compressor and Turbine maps are available for detailed performance analysis.
