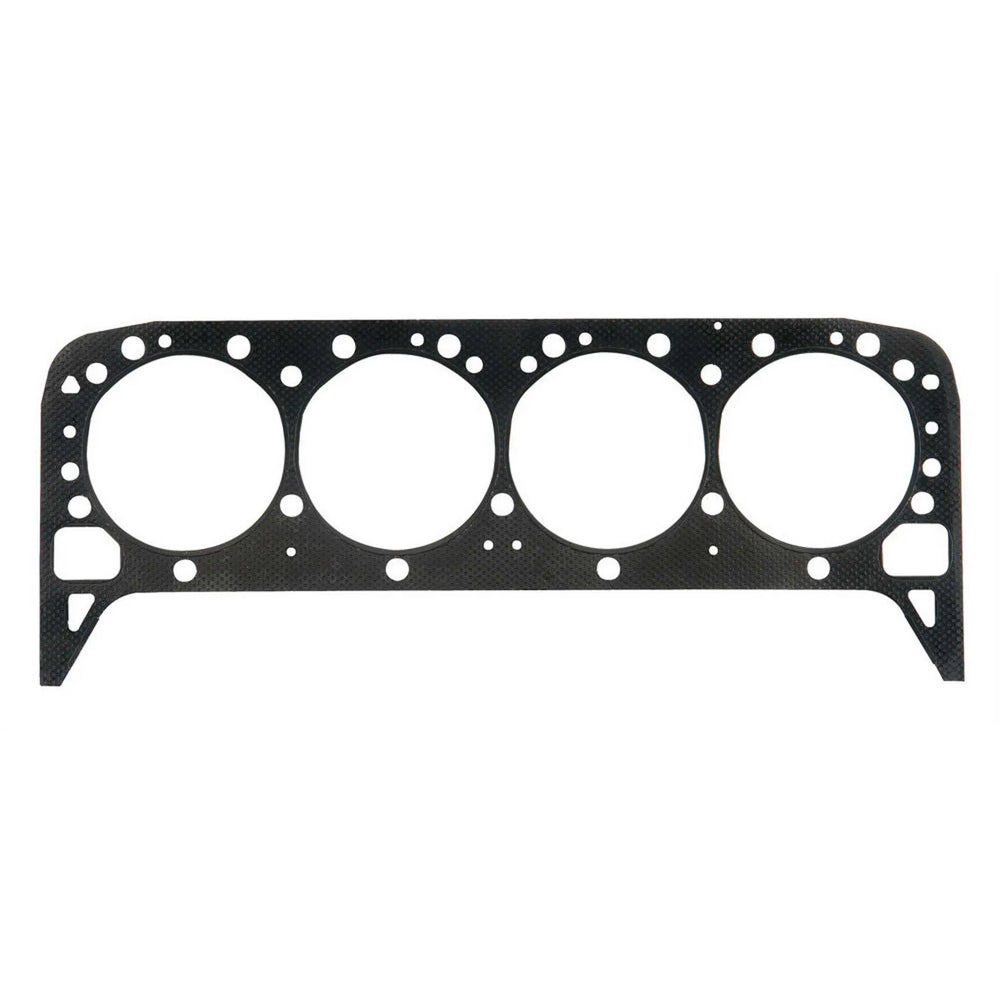

Ultra-Seal Head Gasket 1992-1997 Chevrolet 350 LT1 Gen II Small Block 4.100 Inch Gasket Bore Mr Gasket

Part #: 5716G

Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing Gasket burn-out.They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids.Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use.Sold individually.

Gasket Bore 4.100 inch, Compressed thickness .026 inchFive layer (graphite core/perforated steel outer layers) composite constructionGraphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing Gasket burn-outProvides excellent stability, compressibility and high temperature enduranceCoated with high temperature silicone to ensure sealing of engine fluidsWill not brinell (indent) aluminum cylinder headsFor high performance street, drag race and oval track useDetails:Engine: GM Gen II LTCompressed Thickness: 0.026Compression Ratio: Up to 14:1Emission Code: 5Gasket Bore: 4.1Gasket Line: Ultra-SealMaterial: Graphite SteelQuantity Per Pkg.: 1Warranty: Manufacturer's Limited 90 Day Warranty

Features:

• Five layer (graphite core/perforated steel outer layers) composite construction
• Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out
• Provides excellent stability, compressibility and high temperature endurance
• Coated with high temperature silicone to ensure sealing of engine fluids
• Will not brinell (indent) aluminum cylinder heads
• For high performance street, drag race and oval track use

Cylinder Head Gasket - Ultra-Seal - 4.110 in Bore - 0.026 in Compression Thickness - Rubber Coated Steel / Graphite - GM LT-Series 1992-97 - Each
