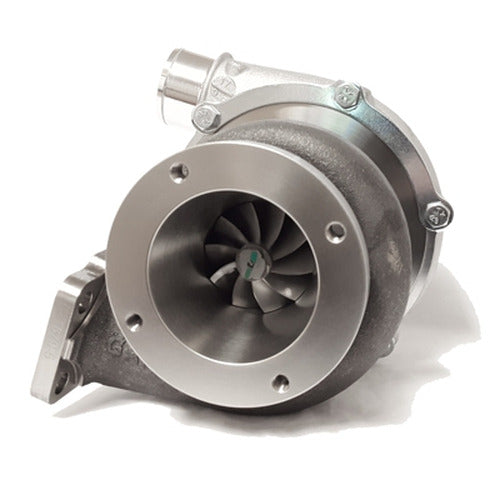

GT3076R Dual Ball Bearing Turbocharger

The Garrett GT3076R turbocharger is a high-performance unit engineered for demanding applications. It boasts a dual ball bearing center housing rotating assembly (CHRA) for enhanced durability and quicker spool. The compressor side features a genuine Garrett GT Aero compressor wheel with a 57mm inducer and 76mm exducer, resulting in a 56 trim. This is paired with a 0.60 A/R compressor housing. The turbine side is equipped with a genuine Garrett GT Inconel turbine wheel, measuring 60mm at the inducer and 55mm at the exducer, with an 84 trim. This unit comes configured with a T3 turbine inlet and a "GT 4Bolt 3" conical exit turbine housing, featuring a .82 A/R. The GT3076R is capable of supporting over 525 horsepower. Installation may require specific fittings and flanges, including options for coolant/water lines, oil feed and drain components, and various exhaust manifold and downpipe flanges. Users should consult the product details for compatible part numbers for these essential connection pieces.
