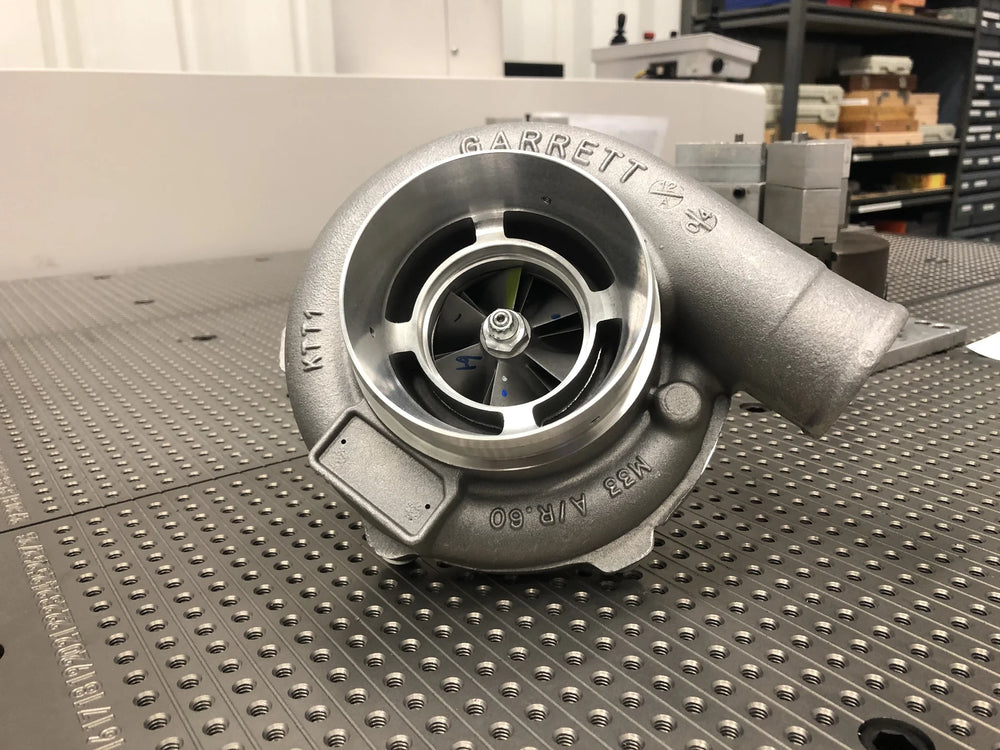

GT3076R Dual Ball Bearing Turbocharger

The Garrett GT3076R, also referred to as GT30R or GT3037, is a high-performance turbocharger engineered for enhanced efficiency and rapid spool-up compared to older turbo technologies. It utilizes a dual stainless steel ball bearing center section for improved durability and reduced shaft movement. This turbo features a 76.2mm compressor wheel with a 56 trim, a 4.00-inch anti-surge inlet, and a 2.00-inch outlet. The turbine side boasts a 60mm wheel with an 84 trim. Customers can select from various turbine housing A/R ratios (.63, .78, .82, or 1.06) and types, including T25, T3, T4, K24/K26, and TiAL stainless steel options, to tailor performance to specific applications. The Ni-Resist iron turbine housings are designed to withstand high exhaust gas temperatures, while the Inconel 713 turbine wheel is rated for up to 1700 degrees Fahrenheit. It is capable of supporting approximately 525 horsepower. The turbocharger comes fully balanced from the factory and includes the manufacturer's warranty.
