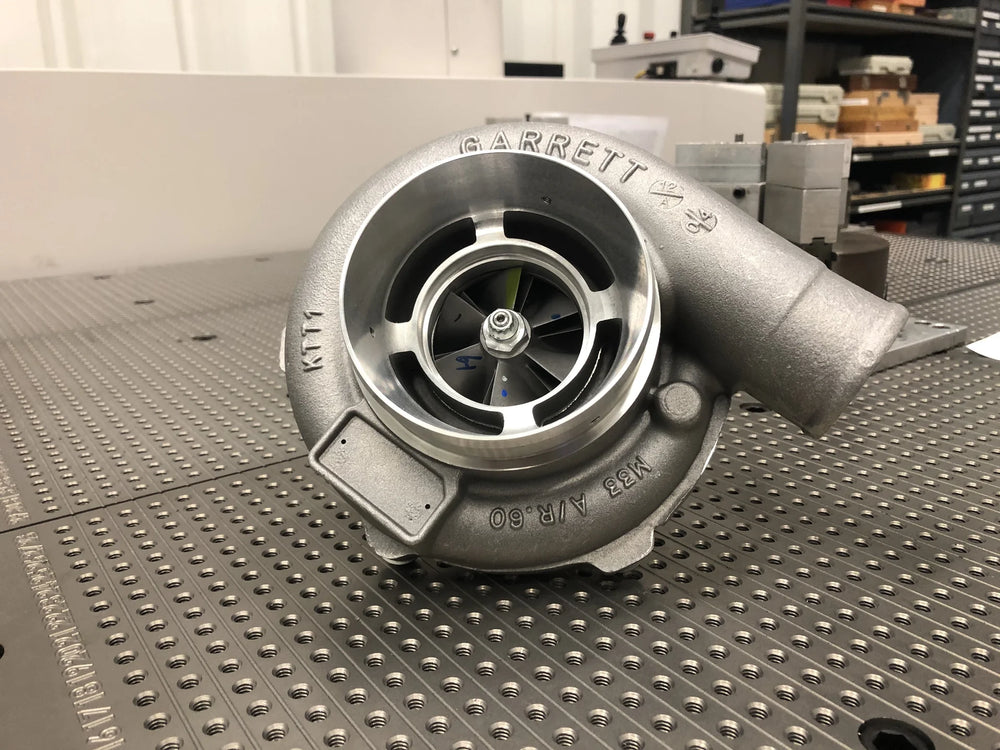

GT3076R Turbocharger

The Garrett GT3076R turbocharger, identified by part numbers like 700382-5012S, is a high-performance component engineered for engines ranging from 2.0L to 3.0L. This unit features advanced dual stainless steel ball bearings for reduced friction and improved durability, along with both oil and water cooling for optimal thermal management. The compressor side boasts a 76.2mm wheel with a 56 trim and a 0.60 A/R housing, featuring a 4-inch anti-surge inlet and a 2-inch outlet. The turbine side is equipped with a 60mm wheel, 84 trim, and is compatible with multiple A/R options (.63, .78, .82, or 1.06) and various exhaust housing flange types (T3, T4, etc.), allowing for precise tuning of spool response and top-end power. This turbocharger is rated to support up to 525 horsepower. The dual ball bearing design offers significant advantages over older sleeve bearing technology, providing quicker spool-up, less lag, and improved overall performance.
