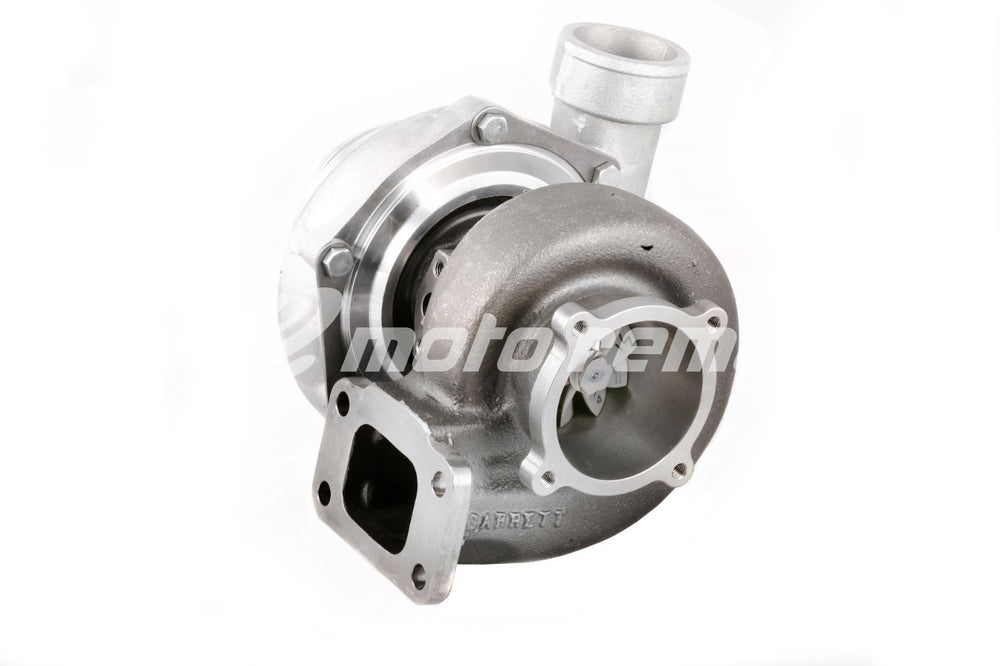

GT3582R Turbocharger

The Garrett GT3582R turbocharger, model number 714568-5012S, is engineered for performance builds, offering a robust solution for increased engine power. It is rated for 400 to 600 horsepower and is suitable for engine displacements between 2.0L and 4.5L. This turbocharger features a 61.4mm compressor wheel with a 0.7 A/R and an 82.0mm turbine exducer diameter. The turbine housing has a T4 inlet and a V-band outlet, making it adaptable to various exhaust manifold configurations. This turbocharger is part of Garrett's GT series, known for its performance aerodynamics. It includes features like original GT series aerodynamics and a 61mm compressor option. While some configurations are internally wastegated, non-wastegated turbine housings are also available. The turbocharger is dedicated for tuning and performance applications, and it is noted that Garrett engine boosting systems are intended for racing vehicles and not for use on public highways. Compatibility and installation may require specific supporting modifications and tuning to achieve optimal performance and reliability.
