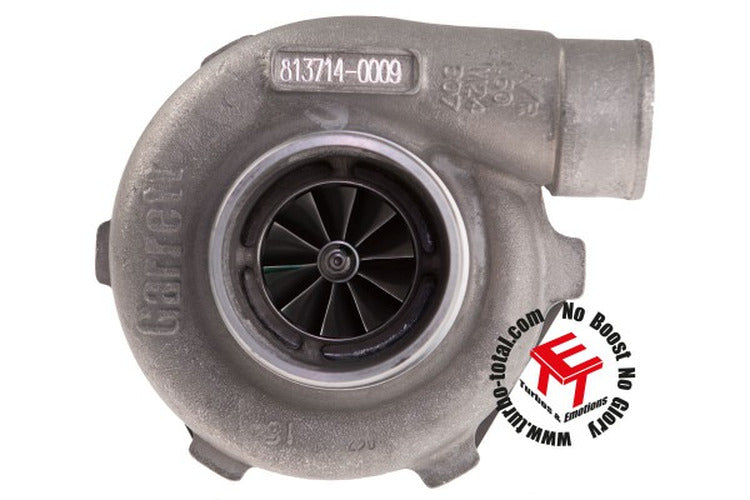

GTX2967R Dual Ball Bearing Turbocharger

The Garrett GTX2967R is a high-performance dual ball bearing turbocharger engineered for enthusiasts seeking optimal power output. It boasts a forged, fully-machined billet aluminum compressor wheel utilizing Garrett's 10-Blade technology and next-generation aerodynamics to deliver a broader horsepower range and quicker boost response. This turbocharger is capable of supporting 275-500 horsepower and is designed for engines with a displacement between 1.8L and 3.0L. Key internal components include a dual ceramic ball bearing cartridge within the CHRA (Center Housing Rotating Assembly), which significantly prolongs the turbo's lifespan and enhances shaft stability. The CHRA is also oil and water-cooled, featuring M14x1.5 water ports to maintain minimal housing temperatures under demanding conditions. The compressor side features a .60 A/R housing, a 3-inch inlet, and a 2-inch outlet, driven by a 67mm, 55-trim billet compressor wheel with a 50mm inducer. The turbine side is equipped with a robust 52mm, 84-trim GT29 turbine wheel, constructed from Inconel for high-temperature resistance. This specific part number, 836041-5001S, is a super core, which means it includes the CHRA and compressor housing but does not come with a turbine housing. This allows for greater flexibility in selecting a turbine housing configuration to match specific application needs. Garrett's GTX Series turbochargers are favored by top motorsports teams for their ability to deliver reliable power across the entire band.
