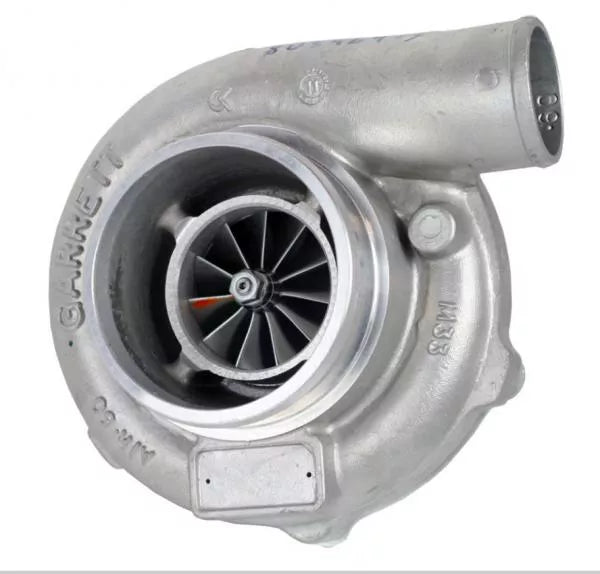

GTX3576R Turbocharger

The Garrett GTX3576R turbocharger, part number 803714-5001S, is a high-performance component designed to enhance engine output. It boasts a high-flow fresh air housing with a 60 A/R and a trim of 58, indicating its airflow capabilities. The turbo is equipped with a double ball bearing system, renowned for its longevity and reduced friction, contributing to improved spool times and overall efficiency. This turbocharger is engineered to deliver between 400 to 600 horsepower, making it suitable for serious performance builds. Its cooling system is both oil and water-cooled, providing robust thermal management under demanding conditions. The turbine wheel measures 68mm, while the compressor wheel is 76.6mm with a 58mm exducer size, optimized for a balance of airflow and boost response. The GTX3576R is suitable for engines with a displacement ranging from 2.0L to 4.5L. It is important to note that this unit is a supercore and does not include a turbine housing; various options are available separately to suit different engine setups and performance goals. The GTX3576R is an upgrade for existing GT3076R and GT3582R turbochargers.
