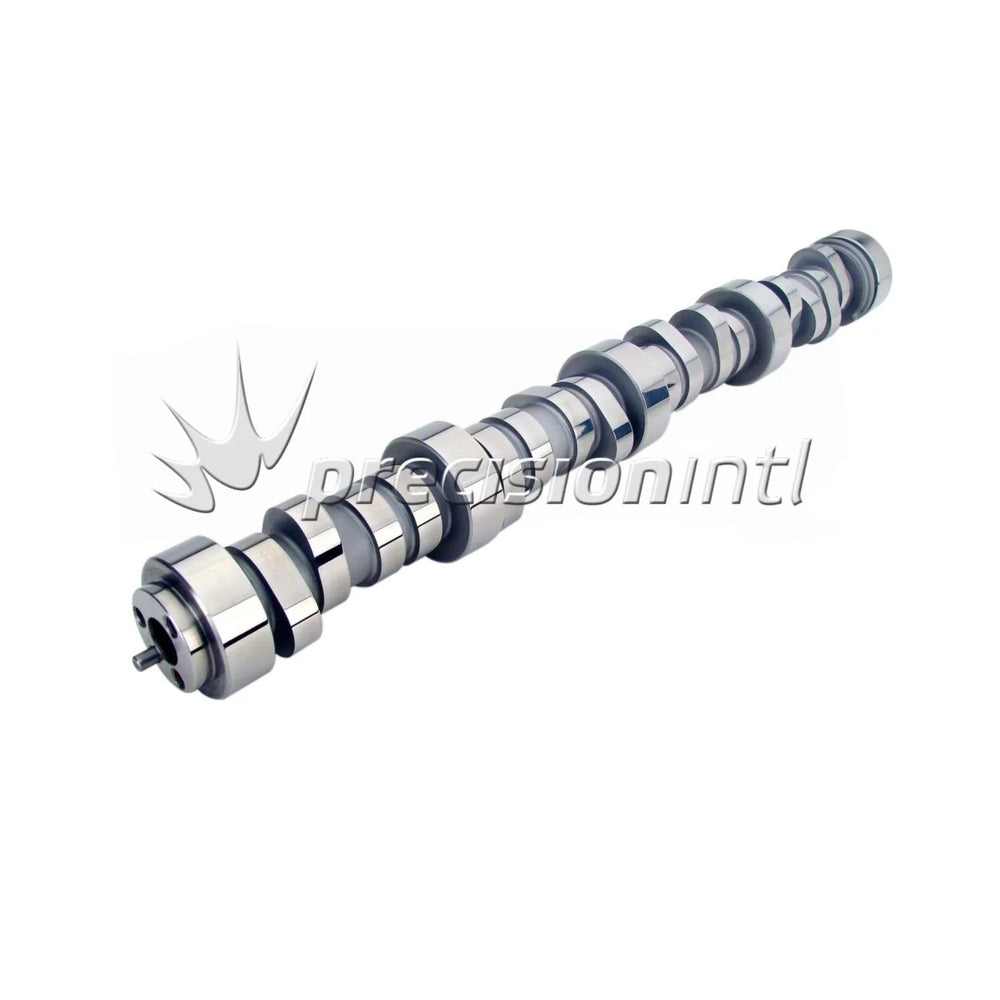

High Lift Hydraulic Roller Camshaft for GM LS V8 219°/223°

The Voodoo 20540716LUN is a high-lift hydraulic roller camshaft from Lunati's Voodoo series, engineered to deliver increased performance for GM LS V8 engines. This camshaft specifications include a duration at 0.050 inch of 219° on the intake and 223° on the exhaust, with a consistent valve lift of .625 inches for both. It has a lobe separation angle (LSA) of 112 degrees and is designed to operate effectively within an RPM range of 1800-6400. The camshaft features a 3-bolt design for secure mounting. Installation of this camshaft requires the use of a compatible valve spring kit, specifically the LT73925K1. Additionally, it requires a DOD (Displacement on Demand) delete kit to ensure proper function. These are critical prerequisites for successful installation and operation. The Voodoo 20540716LUN camshaft is compatible with a wide array of GM LS V8 engines, including L76 (6.0L AFM), L77 (6.0L AFM), L98 (6.0L), LM7 (5.3L), LQ4 (6.0L), LS1 (5.7L), LS2 (6.0L), LS3 (6.2L), LS7 (7.0L), LS9 (6.2L Supercharged), LSA (6.2L Supercharged), and LY2 (4.8L) engines. It is also listed as compatible with various Chevrolet and Holden models, such as the Camaro SS/ZL1, Corvette C6/Z06/ZR1, Silverado, Tahoe, and numerous Holden Commodore, Caprice, and HSV variants, among others.
