Suspension and Components› Shocks, Struts, Coil-Overs and Components

HKS

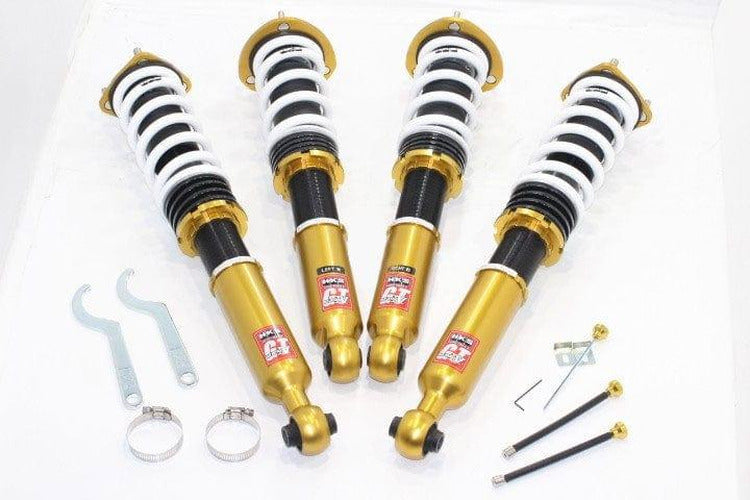

Hipermax S Coil-Over Kit

$3,190.33

SKU: 80230-AF004

Special Order
Free Shipping over $200
$100 Minimum Order
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Overview

It features a mono-tube damper design for accurate and stable control, contributing to a lower ride height and center of gravity for a more stable ride. The system includes a dust boot to protect the shaft from road debris and utilizes PNE Coating for enhanced durability and easier height adjustment.
Show original supplier description
Its mono-tube damper design ensures precise and consistent damping force control, while the PNE coating on the threads provides significantly improved durability and simplifies height adjustments. The system also incorporates a dust boot to shield the damper shaft from impacts and debris. Key specifications include a 30-step damping force adjustment for fine-tuning to various driving conditions, from daily street use to spirited track sessions. The front springs have a rate of 6kg and offer a lowering of -40mm with an adjustable range of -20mm to -90mm. The rear springs are rated at 7kg and provide a lowering of -41mm with an adjustable range of 0mm to -54mm. The front rebound setting is 84.3Nm with a compression setting of 15.7Nm, while the rear settings are 5.59Nm rebound and 1.47Nm compression. To achieve greater than a 41mm rear drop, helper springs are required. Additionally, the remarks specify extending the rear damper length by 3mm to a total case length of 243mm to prevent contact with the brake hose. Some components, such as the bracket, ride height adjusters, and lock nuts, are made from aluminum to reduce unsprung weight, though this may not apply to all vehicle applications. This specific part number, 80230-AF004, is designed to fit the Subaru Legacy B4 models with the BMG chassis, specifically Applied E (2013-2018) and Applied D (2012-2013), both equipped with the FA20F H4 engine.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandHKS
Part Number80230-AF004
CategorySuspension and Components
