Holley EFI Digital Dash

Part #: 553-106

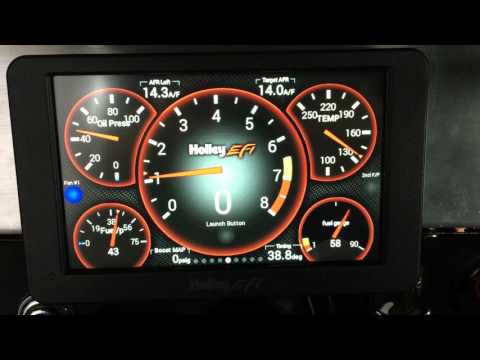

The Holley EFI 7" Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI

Features:

• Plug and play connection to all Holley EFI systems via CAN bus (Not compatible with Sniper 2)
• Compact, customizable 7" dash for use in a variety of motorsports applications
• 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
• 800x480 resolution with auto brightness
• Operating voltage min 8V - 20V
• Weather proof aluminum housing featuring flexible mounting options
• Completely customizable display of all EFI parameters including every user configurable input and output available
• Multiple gauge and indicator types with limitless customization options
• Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual Switch Panel (replaces the need for physical switches)
• User defined alarms for any input
• Configurable progressive shift lights and light bar
• Control and on screen playback of EFI data logs
• Download and save Holley EFI data logs to external USB memory stick
• Expandable internal storage on micro SD card
• Support for future USB devices
• Upgradable with future software enhancements
• Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
• Integrated 3 Axis Accelerometer

Fully customizable 7" Dash, with a huge array of gauge and indicator screens. Compatible with Holley EFI, Sniper EFI, and Terminator X systems.
