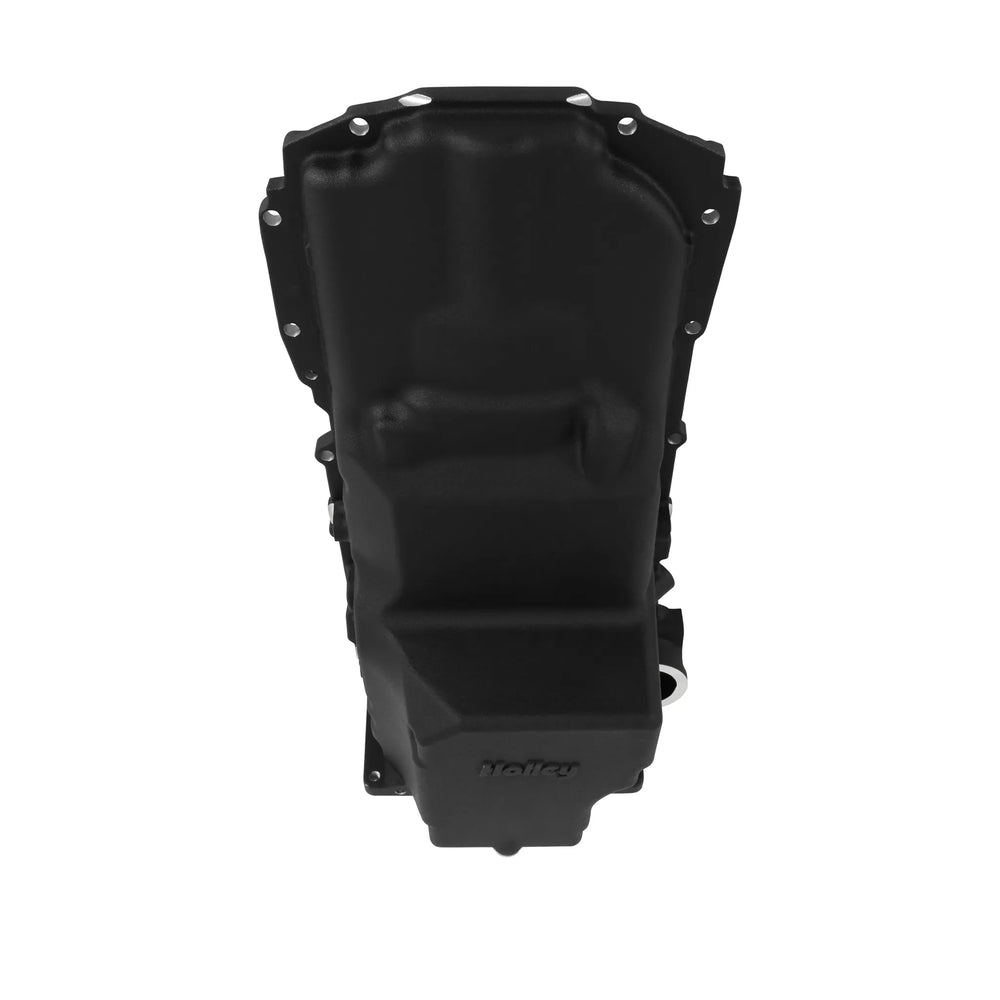

Holley OIL PAN 4WD/TRUCK LT SWAP - BLACK - 302-24BK

Part #: 302-24BK

GM's popular LT engines find their way into a huge variety of vehicles. Unfortunately, the factory LT pans don't always fit in the vehicles we would like. Holley's new LS 4WD Off-Road Engine Swap Oil Pan is designed to help. It provides maximum clearance to the chassis and drivetrain for the K10 chassis and other LT swapped 4WD applications, plus provides an OE (Original Equipment) Style fitment for durability and proper sealing. In addition, the 302-24 and 302-24BK are compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90).

Features:

• Fits GM K10 and other LT Swapped 4-wheel drive applications
• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
• Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
• Traditional high-quality cast aluminum appearance with clean exterior styling
• Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
• Maximum crankshaft stroke - 4.00-inches

Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects
