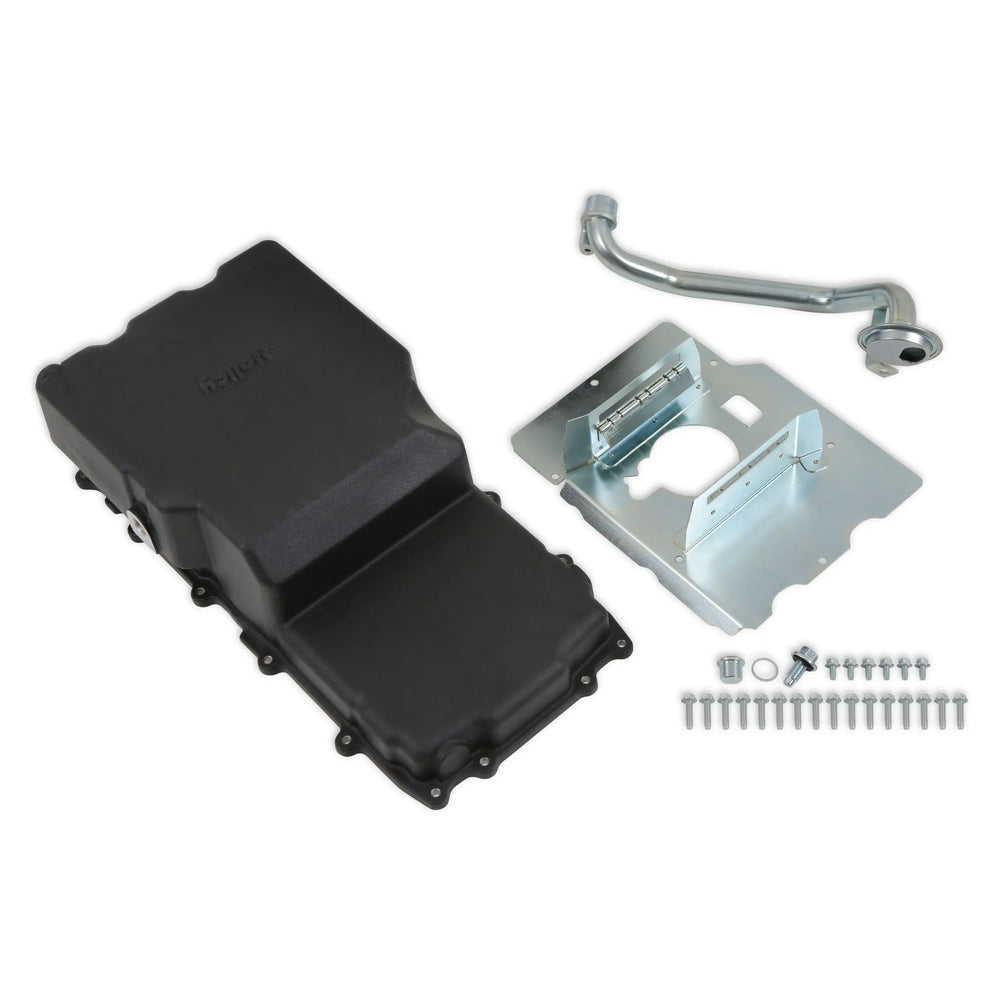

HOLLEY OIL PAN COYOTE GEN III REAR SUMP - 302-90BK

Holley's new Gen1/Gen2 Coyote oil pan simplifies classic Ford F-series Truck swaps. It has a 7.6-quart oil capacity (8.1 with stock filter) for adequate oil supply in street performance and factory-stock type racing. The design uses a stock Coyote engine gasket/baffle assembly for factory-like sealing and baffling/windage. It includes a proprietary design pick-up tube/O-ring and lower sump baffle plate, plus two unmachined drain-back bosses for turbo applications or catch can returns. The 302-90 and 302-90BK were specifically designed to enable Coyote Gen 3 engine swaps in 1953-1979 Ford F100, F150, and F250 2WD trucks. It fits both stock and Crown Vic swapped suspensions. A remote oil filter adapter is required with Crown Vic suspension. It clears the stock frame engine crossmember and steering components when the engine crankshaft centerline is installed at the stock Ford small block height or higher. The unique fitment geometry may also suit other challenging Coyote swap applications. A custom tool from a 1/4" drive 10mm deep socket may be needed to torque the outer bolt of the pick-up tube assembly flange to the oil pump.
