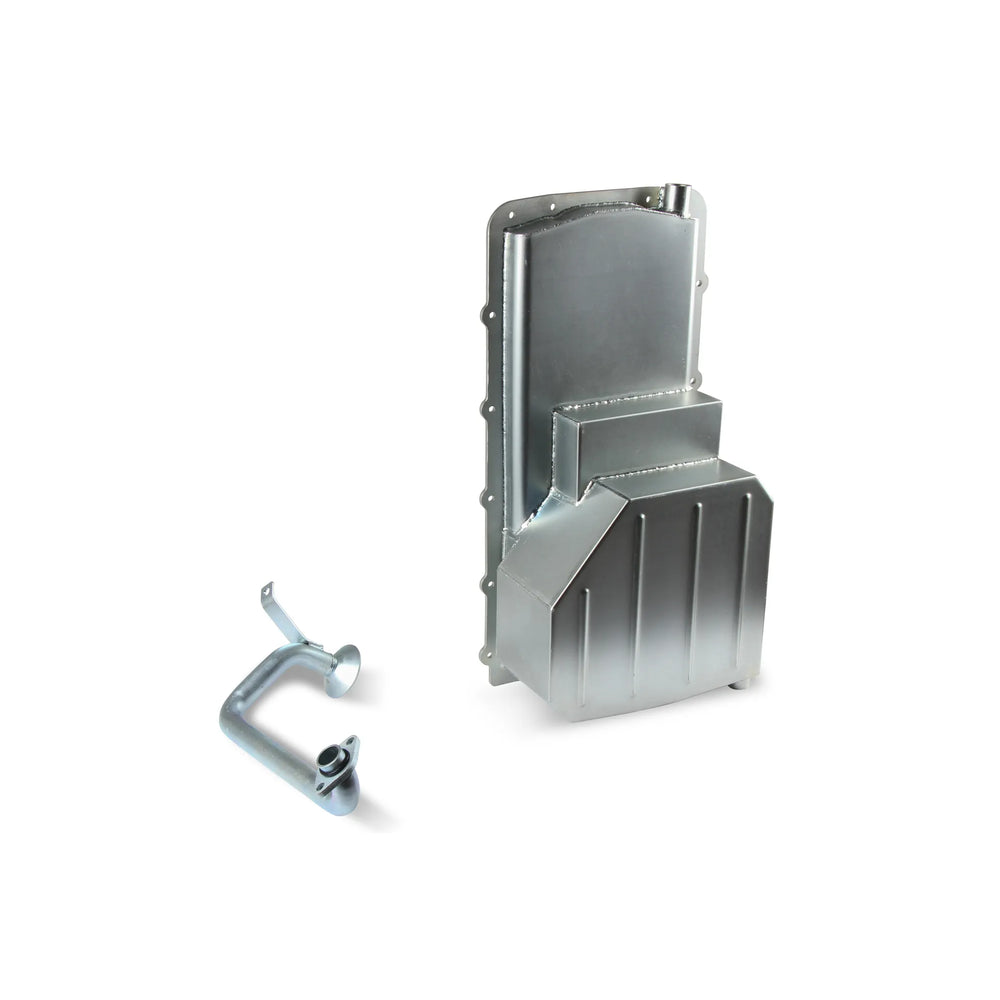

Holley OIL PAN COYOTE I II REAR SUMP - NATUR - 302-80

Part #: 302-80

Holley's new Gen1/Gen2 Coyote oil pan makes your classic Ford F series Truck swap easier. The oil pan design keeps a healthy oil capacity of of 7.6 quarts (8.1 w/ stock filter) to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. A proprietary design pick-up tube/O-ring and lower sump baffle plate are included as well as two drain-back bosses (unmachined) for turbo applications or catch can returns.

Features:

• Maintains oil capacity of stock Mustang Coyote oil pan to ensure adequate oil supply in all street performance and factory-stock type racing applications.
• Oil pan fits 2011-2017 Gen I and II Coyote engines
• Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
• Provides compatibility with the stock Gen 1 and 2 Mustang Coyote engine low-oil level sensor
• Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
• Provides 2 Bosses for drain-back for turbo applications (Unmachined)
• Traditional high-quality cast aluminum appearance with clean exterior styling

Fits Gen 1 and Gen 2 Coyote Engines in 1953-1979 Ford F100, F150, and F250 2WD Trucks
