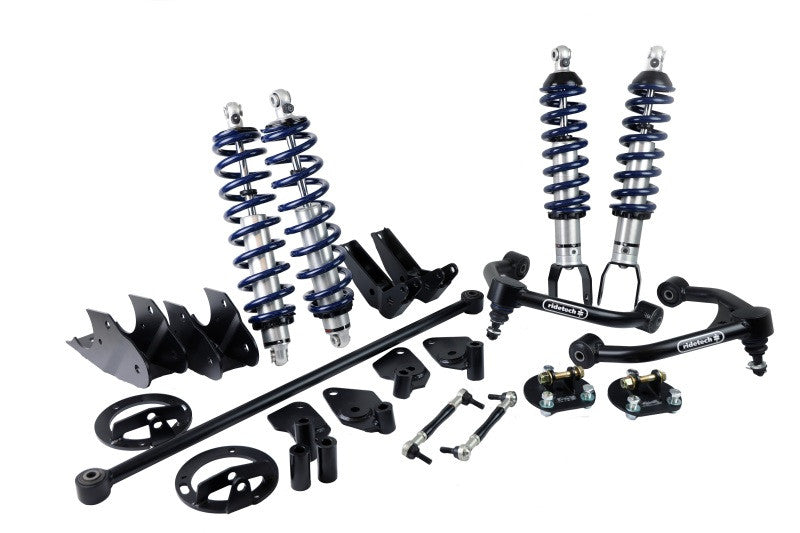

HQ Series Coil-Over System

The Ridetech 2019-2025 Ram 1500 4WD Performance Suspension System is engineered to elevate your truck's performance, stance, and ride quality, transforming it into a muscle truck. This comprehensive kit is 100% bolt-on, fully adjustable, and proudly made in the USA. This system includes front and rear HQ Series Coil-Overs, designed as direct replacements for the factory shock and spring assembly. The front coil-overs allow for a 1"-3" lowered stance, with an optimal 2" drop, and feature an impact-forged aluminum body and a Monotube design for superior ride and handling. Fine-tune your ride with 24 positions of rebound adjustment. Premium CNC cold-wound Hyperco springs are included for optimal performance. Accompanying the coil-overs are tubular upper StrongArms, which are fully assembled with ball joints and bushings and powder-coated satin black. These arms correct camber and ball joint angles, ensuring proper wheel alignment. The rear of the system includes HQ Series Coil-Over Shocks with rebound adjustability and mounting brackets, contributing to a 3-4" drop. A new panhard bar is provided to re-center the axle, and new rear control arm mounts maintain optimal pinion angle and geometry at the lowered height. It is important to note that this system is not compatible with trucks equipped with factory air suspension. Optional Rear StrongArms (part number 13137299) are available separately to eliminate wheel hop, utilizing patented R-Joint rod ends for exceptional performance on both street and track.
