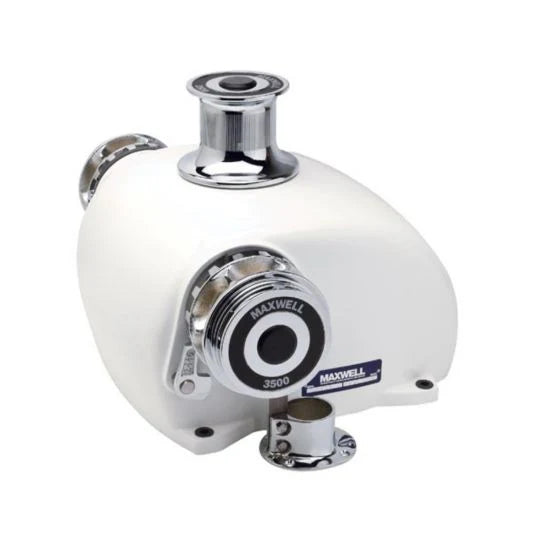

HWC 3500 DBL 12V 3/8" 3B CHAIN

The HWC Series is designed for automatic horizontal handling of chain-only anchor rodes, with an independent capstan for retrieving secondary rope/chain rode or assisting with docking. It has been a part of Maxwell's P&S range since 1987. Key Features: Permits use of traditional shackle and thimble rope and chain connection. All components are above-deck, preventing intrusion into the anchor locker. High-quality finish on above-deck components, manufactured from marine-grade stainless steel (AISI 316) and chromed bronze for long-term durability. Cone-type brake/clutch mechanism allows manual 'free fall' anchoring. Chainwheel locking pawl to assist when using the warping drum independently. Anodized aluminum gearbox. Heavy-duty, dual-direction Cima motor designed for marine winches. Easily disassembled for servicing. Fully automatic single or dual direction chainwheel operation. Functional rope hauling from fore and aft using independent MAX-grip™ snag-free warping drum with clutch disengagement of chainwheel. Optional dual anchor handling with smooth independent control of each chainwheel via cone clutches. Chain pipe assembly supplied. Simple deck mounted installation with no under deck parts. Simplified maintenance with ability to strip the running gear (chainwheel and drum) from the windlass without disturbing the windlass mounting. Chainwheel and warping drum of high-quality chrome finish over marine-grade bronze. Marine-grade alloy casing pretreated, powder coated and finished with a two component white polyurethane paint. Includes: Windlass, On/Off breaker panel, Reversing solenoid, 2 Black footswitches, Up/Down panel switch, Handle.
