Hyd. Lift System

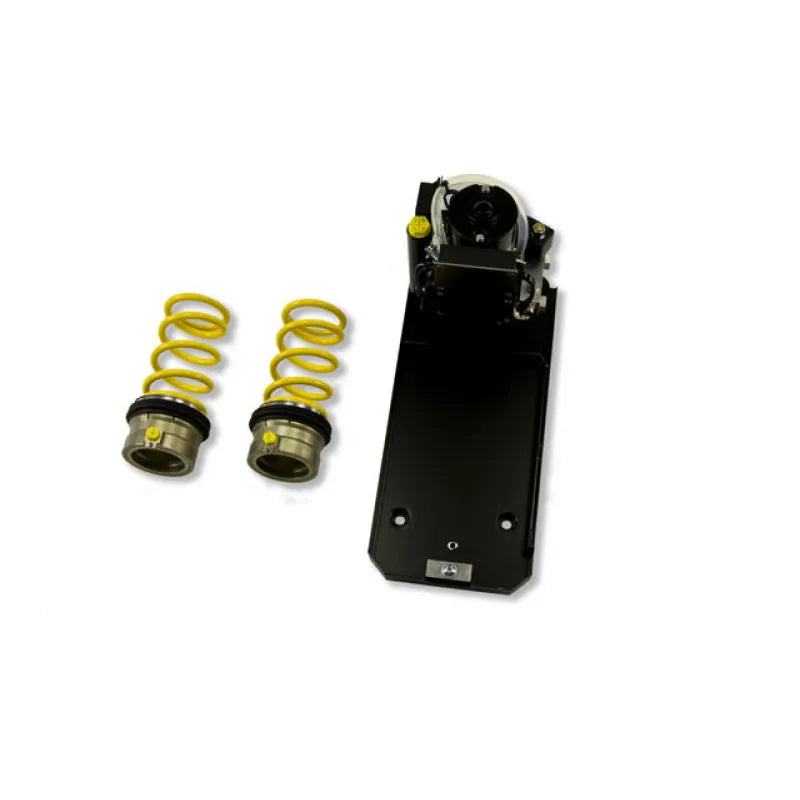

The KW Hydraulic Lift System (HLS) provides additional road clearance for lowered vehicles. The HLS 2 configuration is fitted to the front axle only, while HLS 4 can be attached to both front and rear axles, allowing the entire vehicle to be lifted. The hydraulic cylinder unit is located on the coilover body between the spring perch and spring. This design ensures no compression or unwanted additional suspension movement while driving. It allows cars with low ground clearance to clear obstacles such as speed bumps and road construction more easily. It's available as a complete kit or as a conversion for existing KW coilover kit owners. The system is activated from inside the vehicle via an LED position control switch and can be activated while driving up to 50 mph. It offers fast lifting, with a maximum lift in 5 seconds.
