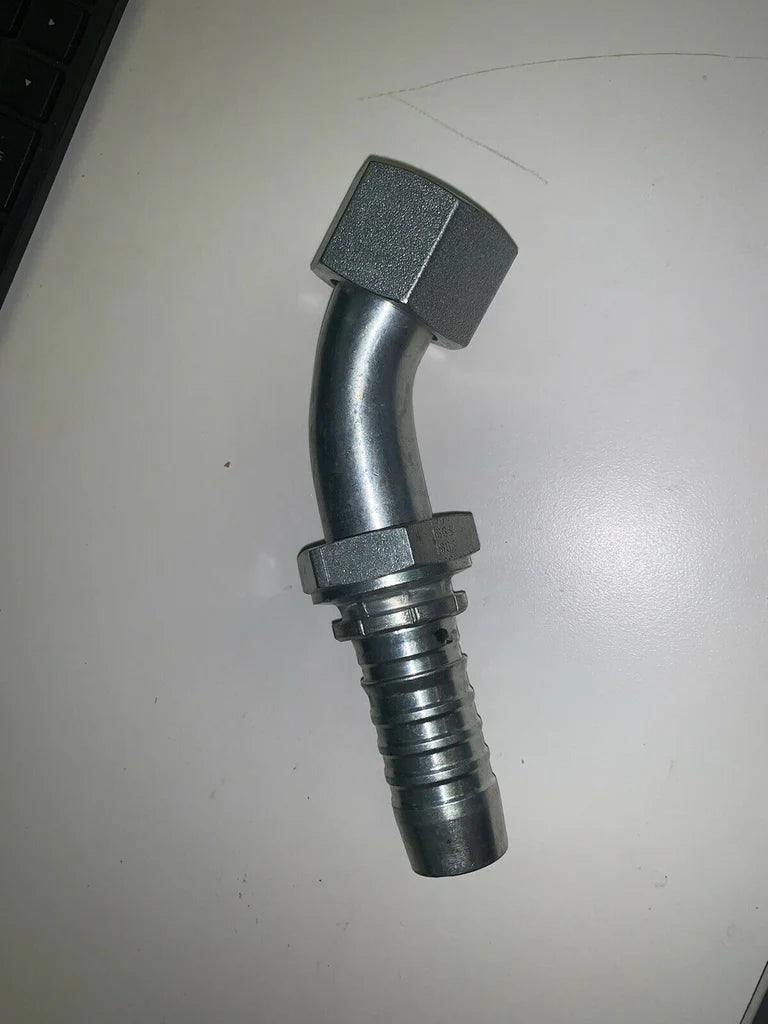

HYDRAULIC COUPLING - GLOBALSPIRAL
SKU: G002 G20234-1616X
Beginner — under 30 min
Description
With a 1-inch (25.4mm) hose inside diameter and a 1 7/16-12 thread size, this Gates fitting offers a male thread outside diameter of 36.5mm and a female thread identification of 34.1mm. Its overall length is 5.67 inches (144mm), with a drop of 0.94 inches (23.9mm) and a cutoff of 3.46 inches (87.9mm). The hex nut size measures 24mm.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Gates |
| Part Number | G002 G20234-1616X |
