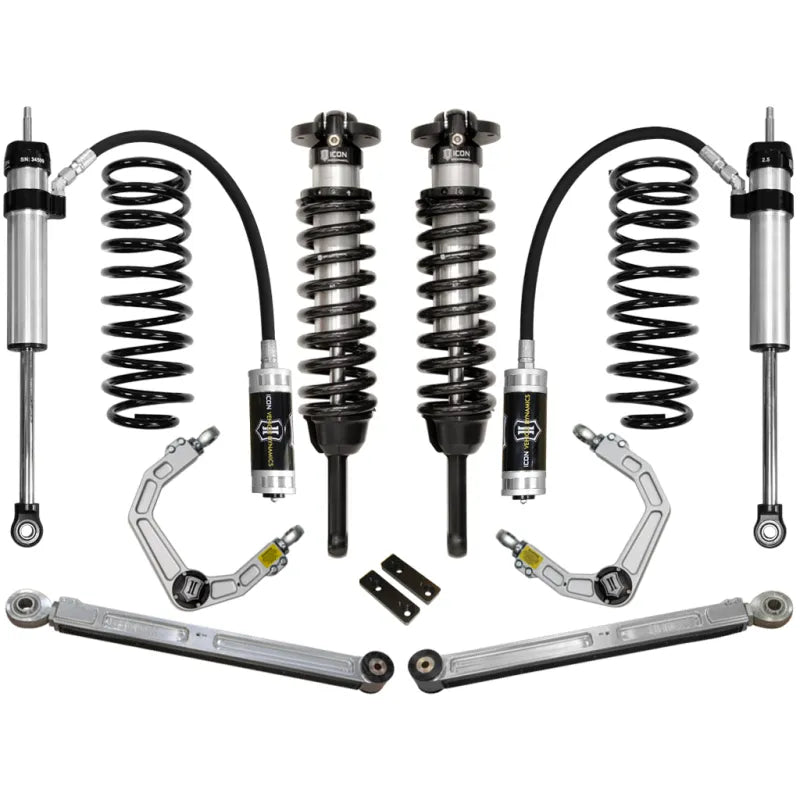

03-09 4Runner FJ Cruiser 0-3.5 Inch Stage 4 Suspension System W Billet UCA Icon Vehicle Dynamics

Part #: K53054

ICON's 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup Inch extended travel 2.5 Series coilover shocks, an ICON billet aluminum upper control arm kit, 2 Inch rear coil springs, and a billet aluminum rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear.The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable Inchfade Inch occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON's InchBump Zone Inch technology which significantly increases damping ability in the last 2 Inch of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.Features and Benefits:This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball jointIncreased wheel travel and ride quality over stockBolt-on system means no cutting or welding necessary for installVehicle specific tuned front and rear shocks for superior shock damping and controlAdjustable coilovers provide 0-3.5 Inch of front lift heightExtended Travel coilovers matched with ICON UCA provides increased front droop travelBillet Aluminum rear lower links offer on vehicle pinion angle adjustment6061 aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock body with 7/8 Inch shaftFK Rod End bearings for extended longevity and minimal deflection2.5 Aluminum Series remote reservoir rear shocks with 7/8 Inch shaftsDetailsBushings Included: YesCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Grade Type: PerformanceMaximum Lift: 3.5 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650.0Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair), 198000 - 2 Pin Coilover Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench

Features:

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts

2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA
