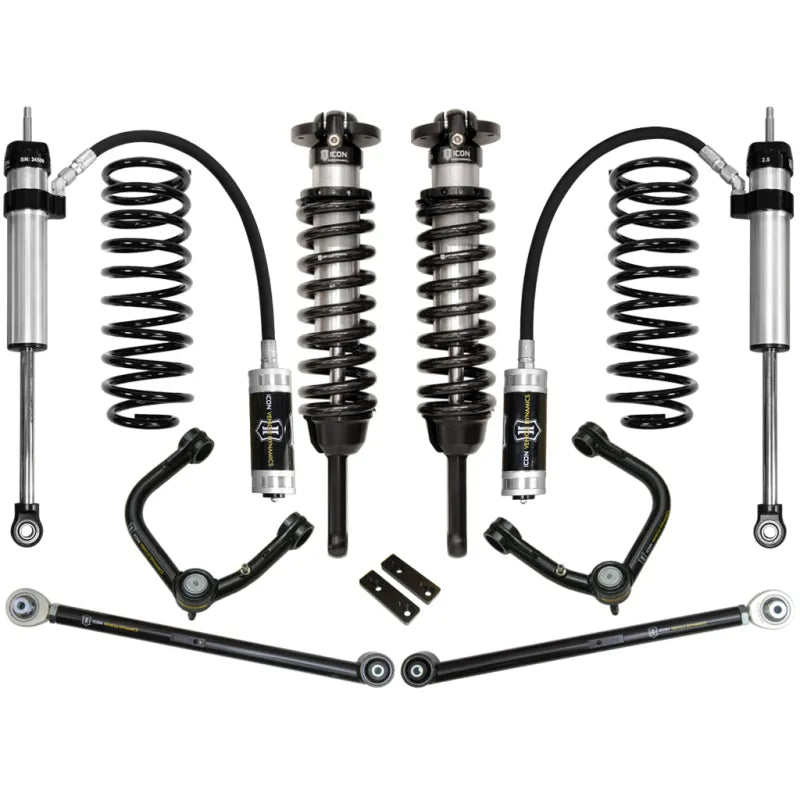

03-09 4Runner FJ Cruiser 0-3.5 Inch Stage 4 Suspension System W Tubular UCA Icon Vehicle Dynamics

Part #: K53054T

ICON's 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup - extended travel 2.5 Series coilover shocks, an ICON tubular Delta Joint upper control arm kit, 2" rear coil springs, and a tubular rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable fade" occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON's Bump Zone" technology which significantly increases damping ability in the last 2" of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

Features:

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts

2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UCA
