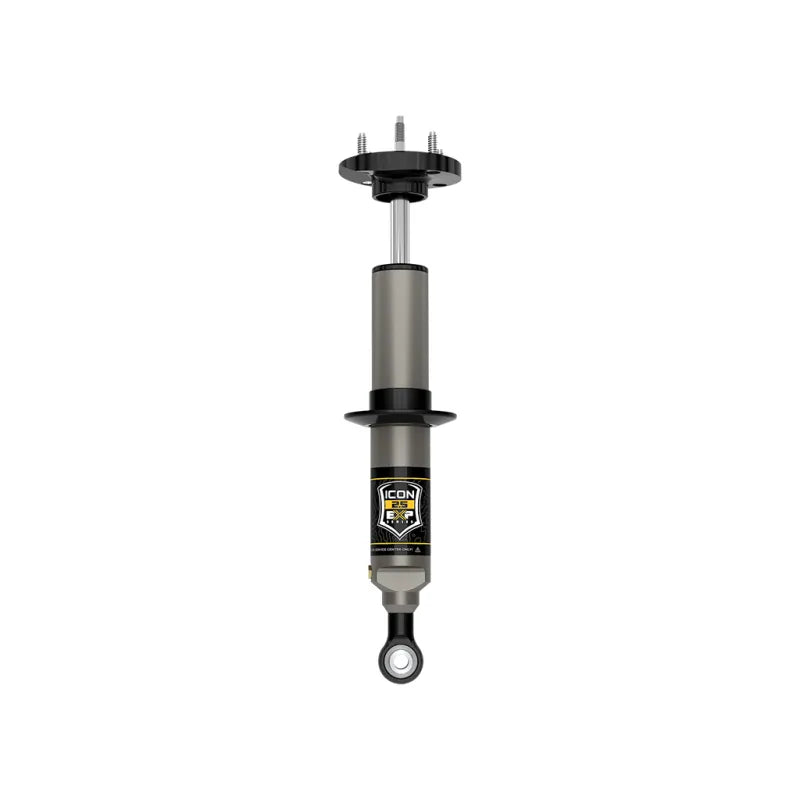

07-21 Toyota Tundra Front Exp Coilover Icon Vehicle Dynamics

Part #: 58655

EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion.The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.Features and Benefits:The 6061-billet aluminum coil spring seat is CNC machined to fit the Tundra's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0 inch to 2.25 Inch of lift over stock.EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.Vehicle specific design for 2007-2021 Toyota TundraVehicle specific tuned for superior shock damping and control2.5 Aluminum Series Shock with Internal ReservoirAdjustable ride heights from 0-2.25 Inch of front lift over stock with the use of snap ringUtilizes factory coil and coil hardwareInverted shaft up design featuring 7/8 Inch diameter, induction hardened, chrome plated shaftImpact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finishCNC machined 6061 aluminum components with a black anodized finishPTFE lined spherical bearing for extended longevity and minimal deflectionFully rebuildable and re-tunableDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Height: YesAdjustable Rebound: NoAdjustable Ride Height: YesBody Diameter: 2.5 InchCoil Over Springs Included: NoCoil Spring Included: NoCoil Spring InsulatorS Included: NoCompressed Length: 17.11Cylinder Color: GrayCylinder Finish: Hard AnodizedCylinder Material: AluminumCylinder Outside Diameter: 2.5Damping Type: OilDust Shield Included: NoExtended Length: 24.15Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 2.25 InchMinimum Lift: 0.0 InchRemote Reservoir: NoSelf Leveling: NoService Parts: 252010 - 2.5 Ifp Rebuild KitShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyeletShock Absorber Rod End Measuring Point: Shoulder Of StemTravel Length: 7.04Upper Mount Type: StemValving Type: Digressive

Features:

• Vehicle specific design for 2007-2021 Toyota Tundra
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2.25" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

2007-2021 TOYOTA TUNDRA FRONT 2.5 EXP SERIES COILOVER
