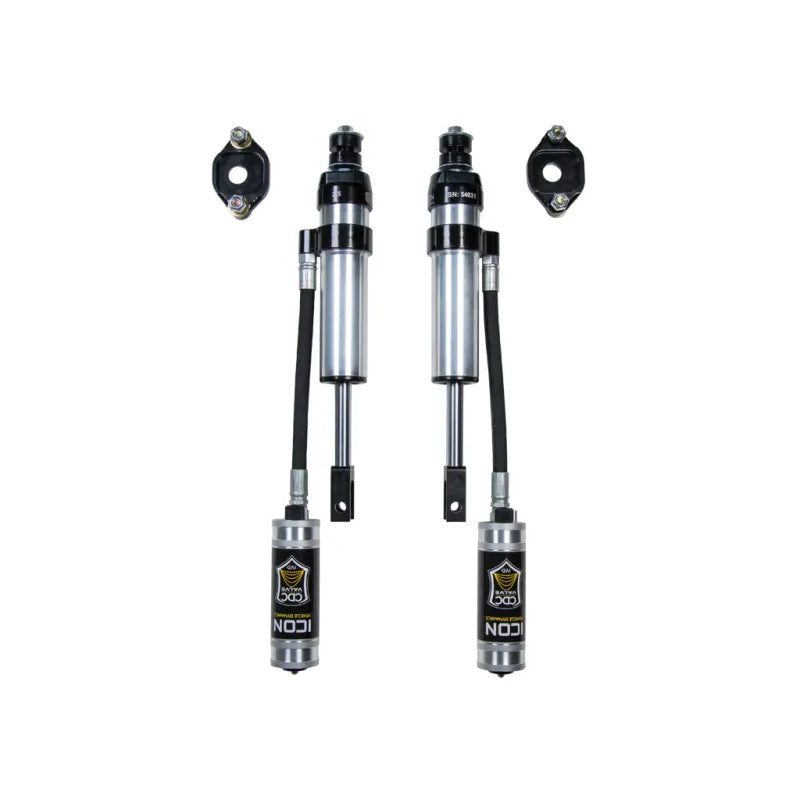

ICON 11-19 GM HD 0-2in Front 2.5 Series Shocks VS RR CDCV - Pair w/ICON Upper Control Arm

Part #: 77832CP

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.Features and Benefits:ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionRemote reservoir design improves heat dissipation to reduce shock fade during prolonged usePremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeNitrogen charged monotube design with remote reservoirOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftPTFE lined spherical bearings and application specific mounting hardware6061 aircraft grade aluminum CNC machined componentsCAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance100 Percent Rebuildable100 Percent RevalveableDetailsAdjustable: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: ClevisMounting Hardware Included: YesService Parts: 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 611006 - 9/16 HD Stem Bushing Kit, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Center Of Clevis HolesTube Outside Diameter: 2.5Upper Mount Type: StemAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• 100% Rebuildable
• 100% Revalveable

2011-2019 GM HD 0-2" LIFT FRONT 2.5 VS REMOTE RESERVOIR CDCV EXTENDED TRAVEL SHOCK PAIR
