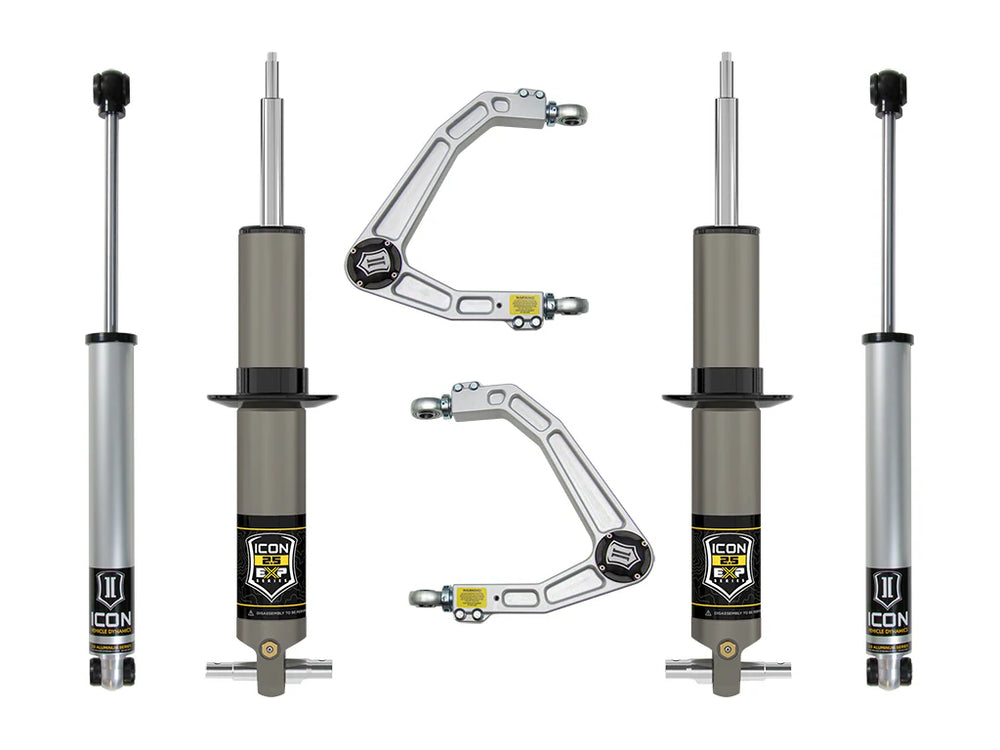

19-23 GM 1500 2.375-3.75 Inch Lift Stage 2 Exp Suspension System Billet Icon Vehicle Dynamics

Part #: K73072

The ICON Vehicle Dynamics Stage 2 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35 Inch tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.Features and Benefits:This Stage 2 system features the 2019-2023 GM 1500 EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2019-2023 GM 1500 pickup with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind.Rounding out the Stage 2 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.Vehicle specific design for 2019-2023 GM 1500 pickups2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardwareAdjustable front ride heights from 2.375-3.75 Inch of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish7/8 Inch diameter induction hardened, chrome plated shock shaft with inverted shaft-up designBillet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivabilityUCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performanceCNC machined 6061 aluminum components with a black anodized finishAll ICON shock absorbers are fully rebuildable and re-tunableDetailsBushings Included: YesGrade Type: PerformanceMaximum Lift Front: 3.75 InchMinimum Lift Front: 2.375 InchShocks Included: YesAdd On Part: 191013 - Nipple Greasing Adapter Kit, 191014 - .25 Inch Collar Spanner Pin Wrench

Features:

• Vehicle specific design for 2019-2023 GM 1500 pickups
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 2.375-3.75" of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8" diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable

Stage 2 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75a of front lift, improved performance, and 35a tire fitment. Billet UCAs improve alignment and 2.0 Series rear shocks to balance the tuning from front to rear.
