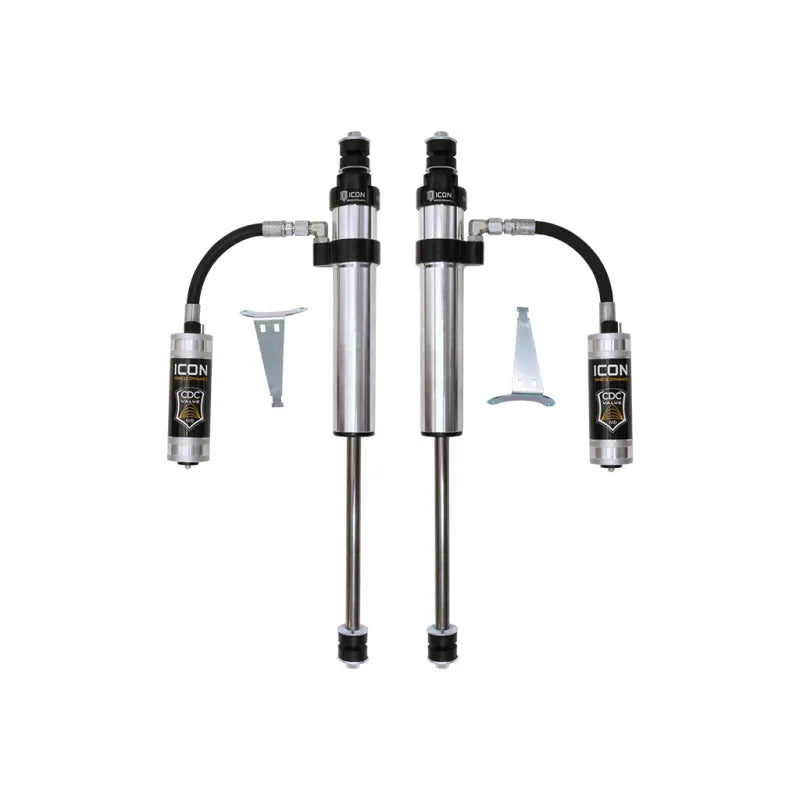

ICON 91-97 Toyota Land Cruiser 80 4-6in Front 2.5 Series Shocks VS RR CDCV - Pair

Part #: 57803CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.Features and Benefits:Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use6061 aircraft grade aluminum CNC machined componentsICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compressionPTFE lined spherical bearings and application specific mounting hardwareICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knobOne piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road7/8 Inch diameter induction hardened, chrome plated shock shaftNitrogen charged monotube design with piggyback reservoirPremium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeOne-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish100 Percent Rebuildable100 Percent RevalveableDetailsAdjustable: YesBoot Included: NoBore Diameter: 2.25Cylinder Color: SilverCylinder Material: AluminumDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: StemMounting Hardware Included: YesService Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 611006 - 9/16 HD Stem Bushing Kit, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 257341STEM - 7/8 Shaft 17.58 Oal, 11.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade KitShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Shoulder Of StemTube Outside Diameter: 2.5Upper Mount Type: StemAdd On Part: 252012 - -4 To -10 Hose Shield Kit

Features:

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 6061 aircraft grade aluminum CNC machined components
• ICON's internal Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• PTFE lined spherical bearings and application specific mounting hardware
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

1991-1997 LAND CRUISER 80 SERIES 4-6" LIFT FRONT 2.5 VS REMOTE RESERVOIR CDCV SHOCK PAIR
